Next.js 16 Redis Caching & Rate Limiting

In Blog #21, we added Redis to a private Docker Compose data network. Infrastructure alone is not a use case. This guide applies Redis only to repeated expensive reads and shared abuse controls, while keeping PostgreSQL authoritative and Next.js framework caching separate.

1. Blog #20Docker + TraefikPublished
2. Blog #21Compose StackPublished
3. Blog #22Redis Cache + LimitsCurrent
4. Blog #23Background JobsUpcoming

Redis at a Glance

Redis is a fast server-side data store. In a Next.js system it can hold rebuildable cache entries, shared counters, provider-supported session state, locks, or queue data. It is not required by Next.js, it does not replace PostgreSQL, and it does not automatically make an application faster.

Does Your Next.js App Need Redis?

A Redis call is still a network call. Caching trivial work can increase latency and complexity. Measure the uncached path, choose a freshness requirement, and define failure behavior before adding it. See Blog #14: Performance Optimization for measurement-first decisions.

Redis vs Next.js Caching

Blog #8 explains Cache Components, tags, and revalidation. Redis application keys are a separate layer. Deleting a Redis key does not automatically invalidate a Next.js-rendered result, and revalidateTag() does not delete an arbitrary Redis key.

Connecting Redis to Next.js

The project has no Redis client to reuse. For this Node-runtime example, install the official client. If a real project already uses ioredis or a provider SDK, keep that supported client instead of installing a second connection stack.

npm install redis

Keep the connection URL server-only, following Blog #16. Use the real provider's TLS and authentication format; do not copy an unauthenticated local URL into production.

REDIS_URL=redis://APP_USER:APP_PASSWORD@redis:6379

NEXT_PUBLIC_REDIS_URL=redis://...

Create a Reusable Redis Client

Do not create and connect a fresh client for every request. A long-lived Node server normally reuses one client per process. Development hot reload can evaluate modules repeatedly, so a global development cache avoids accidental duplicates. Serverless and edge runtimes have different lifecycles; use the provider's officially supported connection pattern.

import 'server-only'
import { createClient } from 'redis'

const globalForRedis = globalThis as typeof globalThis & {
  redis?: ReturnType<typeof createClient>
}

export const redis = globalForRedis.redis ?? createClient({
  url: process.env.REDIS_URL,
})

redis.on('error', (error) => {
  console.error('Redis connection error', { name: error.name })
})

if (process.env.NODE_ENV !== 'production') {
  globalForRedis.redis = redis
}

export async function getRedis() {
  if (!process.env.REDIS_URL) throw new Error('REDIS_URL is required')
  if (!redis.isOpen) await redis.connect()
  return redis
}

The log records an error category, not the URL. Decide whether a cache failure should fall back to PostgreSQL or fail closed. A rate limiter protecting expensive or sensitive work may need a stricter policy than a disposable page cache.

Redis Keys, Values, and Private Data

Use predictable application namespaces and stable identifiers. The exact prefix should come from the real application, not this publishing site.

Do not include passwords, session tokens, raw authorization headers, or personal data in key names because keys appear in metrics and operational tooling. Serialize only the fields needed by the consumer. Private values must include an authorization-safe user or tenant scope, and code must authorize before reading or writing them.

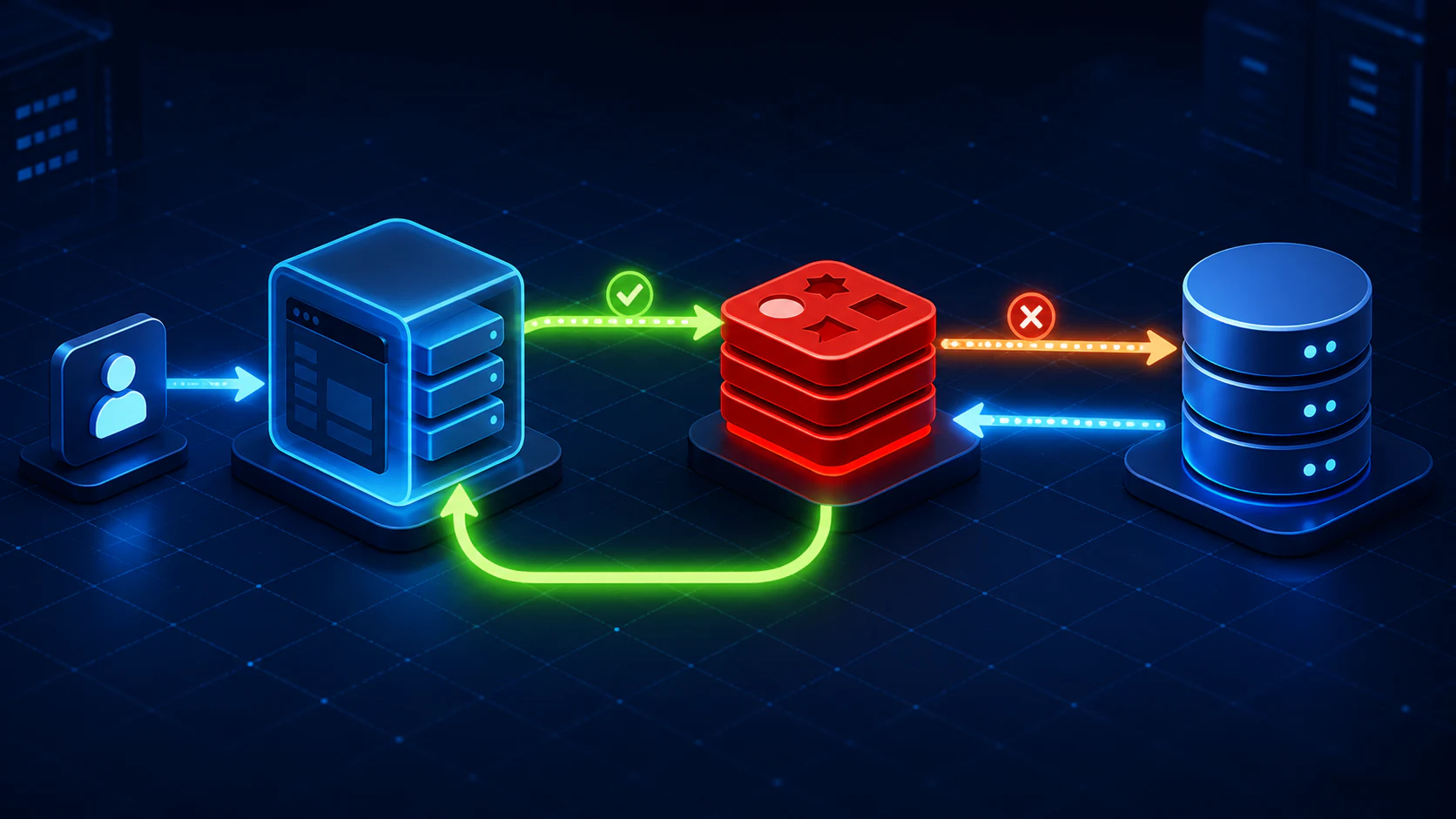

Cache PostgreSQL with Cache-Aside

PostgreSQL remains authoritative, using the Drizzle architecture from Blog #19. Cache-aside checks Redis first. On a miss it reads PostgreSQL, writes a bounded Redis entry, and returns the same safe result. If Redis is unavailable, a read-only cache path can often query PostgreSQL directly, but monitor the resulting database load.

const POSTS_KEY = 'APP:posts:list:v1'

export async function getPosts() {
  const client = await getRedis()
  const cached = await client.get(POSTS_KEY)
  if (cached) return JSON.parse(cached) as PostSummary[]

  const posts = await db.query.posts.findMany({
    columns: { id: true, title: true, publishedAt: true },
  })

  const ttlSeconds = getPostsFreshnessPolicy()
  await client.set(POSTS_KEY, JSON.stringify(posts), { EX: ttlSeconds })
  return posts
}

getPostsFreshnessPolicy() represents an application decision rather than an invented universal TTL. Validate parsed data when cache contents may outlive deployments or change schema. Large values can waste network and memory; cache the smallest useful representation.

TTL and Expiration

A TTL removes a key automatically after a chosen number of seconds. It limits stale data and memory growth, but it cannot guarantee immediate freshness after a write. Product requirements should define how long each data class may remain stale.

A news headline, user permission, product price, and rarely changing public configuration have different freshness and risk. Random TTL jitter can reduce synchronized expiry for very popular keys, but introduce it only when stampedes are observed and the chosen client pattern is tested.

Avoid Stale Data and Cache Stampedes

TTL is a safety net, not the entire consistency model. If an editor publishes a corrected post, waiting for a long TTL may violate the product requirement even though Redis behaves exactly as configured. Identify every write path that changes a cached view: create, update, delete, bulk import, moderation, scheduled publication, webhook, and administrative repair. Each path should invalidate the smallest predictable key set after the authoritative transaction commits.

A cache stampede happens when a popular key expires and many requests miss together. Every request can then repeat the same expensive database or upstream call. Start with measurement and modest TTL choices. If stampedes become real, options include a maintained request-coalescing library, a short lock with ownership-safe release, background refresh, stale-while-revalidate behavior, or intentionally staggered expiry. Each option changes failure and freshness behavior; do not add a homemade distributed lock merely because the term appears in a tutorial.

Negative caching can briefly store a safe not-found result for repeated missing public resources, but it needs a shorter policy and precise invalidation when the resource is later created. Never let a shared negative cache reveal whether a private account, email address, or protected record exists.

Cache Invalidation After Writes

When a Server Action or Route Handler changes PostgreSQL, complete the authorized database write first. Then delete or replace the exact Redis keys and trigger any relevant Next.js revalidation. Avoid broad wildcard deletion and never use destructive database-wide flush commands in application workflows.

'use server'

export async function updatePost(input: unknown) {
  const data = validateAndAuthorizePostUpdate(input)
  await db.update(posts).set(data.values).where(eq(posts.id, data.id))

  const client = await getRedis()
  await client.del(`APP:post:${data.id}:v1`, 'APP:posts:list:v1')
  revalidateTag(`post:${data.id}`, 'max')
}

This ties together Blog #18, PostgreSQL, Redis, and Next.js cache invalidation. If the database succeeds but Redis fails, record a sanitized operational error and choose a recovery strategy; do not pretend a cross-system update is automatically transactional.

Server Components, Route Handlers, and Server Actions

Server Components can read cached values, but rendering behavior still depends on Next.js cache and request APIs. Blog #10 provides the HTTP boundary for cached APIs and rate limits. Server Actions can invalidate after authorized writes. Client Components must never import the Redis module; they receive serialized safe data or call a trusted server boundary.

Rate Limiting with Redis

A rate limiter decides whether an identity may perform an action during a window. Redis is useful because all application instances share the same atomic counter. The goal is cost and abuse control, not perfect bot prevention. Limits should reflect endpoint cost, authentication state, normal user behavior, and recovery requirements.

Choose a Trustworthy Identifier

Prefer an authenticated user, tenant, or API-key identity when available. IP addresses can group unrelated users behind NAT, change over time, and behave differently with IPv6. Never trust X-Forwarded-For from arbitrary clients. In the Blog #20 Traefik architecture, accept forwarding headers only from the trusted proxy and configure it to overwrite, not blindly append, untrusted values.

Atomic Fixed-Window Example

The key includes the current time bucket. A Redis transaction atomically increments the counter and ensures the bucket expires. Passing limit and windowSeconds keeps policy outside the utility; choose those values for the actual endpoint rather than copying a tutorial number.

type RateLimitPolicy = { limit: number; windowSeconds: number }

export async function checkRateLimit(
  scope: string,
  identifier: string,
  policy: RateLimitPolicy,
) {
  const nowSeconds = Math.floor(Date.now() / 1000)
  const bucket = Math.floor(nowSeconds / policy.windowSeconds)
  const key = `APP:rate:${scope}:${identifier}:${bucket}`
  const client = await getRedis()

  const [count] = await client
    .multi()
    .incr(key)
    .expire(key, policy.windowSeconds + 1)
    .exec()

  const resetAt = (bucket + 1) * policy.windowSeconds
  return {
    allowed: Number(count) <= policy.limit,
    remaining: Math.max(0, policy.limit - Number(count)),
    retryAfter: Math.max(1, resetAt - nowSeconds),
  }
}

This avoids the unsafe GET → calculate in JavaScript → SET race. For sliding windows, token buckets, complex quotas, or provider-specific Redis, prefer a maintained limiter library with a supported Redis store. Current Redis guidance also documents atomic scripts and purpose-built patterns.

Fixed Window, Sliding Window, or Token Bucket?

None is universally best. A low-cost public read, login attempt, file conversion, and paid AI request have different burst tolerance and harm. Select a maintained implementation whose algorithm, Redis commands, failure semantics, and returned headers are documented. Load-test boundary behavior and confirm that concurrent requests cannot spend the same allowance twice.

Protect a Route Handler

export async function POST(request: Request) {
  const identity = await getAuthorizedLimiterIdentity(request)
  const policy = getAiEndpointPolicy(identity)
  const result = await checkRateLimit('ai', identity.key, policy)

  if (!result.allowed) {
    return Response.json(
      { error: 'Too many requests' },
      {
        status: 429,
        headers: { 'Retry-After': String(result.retryAfter) },
      },
    )
  }

  return runAuthorizedExpensiveOperation(request)
}

Retry-After uses delay-seconds here and tells the client when this bucket resets. Do not reveal internal keys or detailed security signals. Rate limiting complements authentication, authorization, validation, cost budgets, timeouts, and provider controls.

Choose Failure Behavior Per Endpoint

If Redis times out, a public documentation cache may bypass Redis and continue to its source. A limiter in front of a paid generation endpoint may need to fail closed or switch to a conservative local safeguard so an outage cannot create unlimited spend. Login protection may combine provider controls and a degraded fallback. There is no safe global rule.

Bound the Redis operation with provider-supported timeouts, distinguish a denial from an infrastructure error, and monitor both. Do not return 429 for every Redis failure: 429 means the caller exceeded a limit, whereas a dependency outage is a server availability problem. Similarly, do not silently fail open on high-risk actions without an explicit, reviewed business decision.

Login, Contact Form, and API Policies

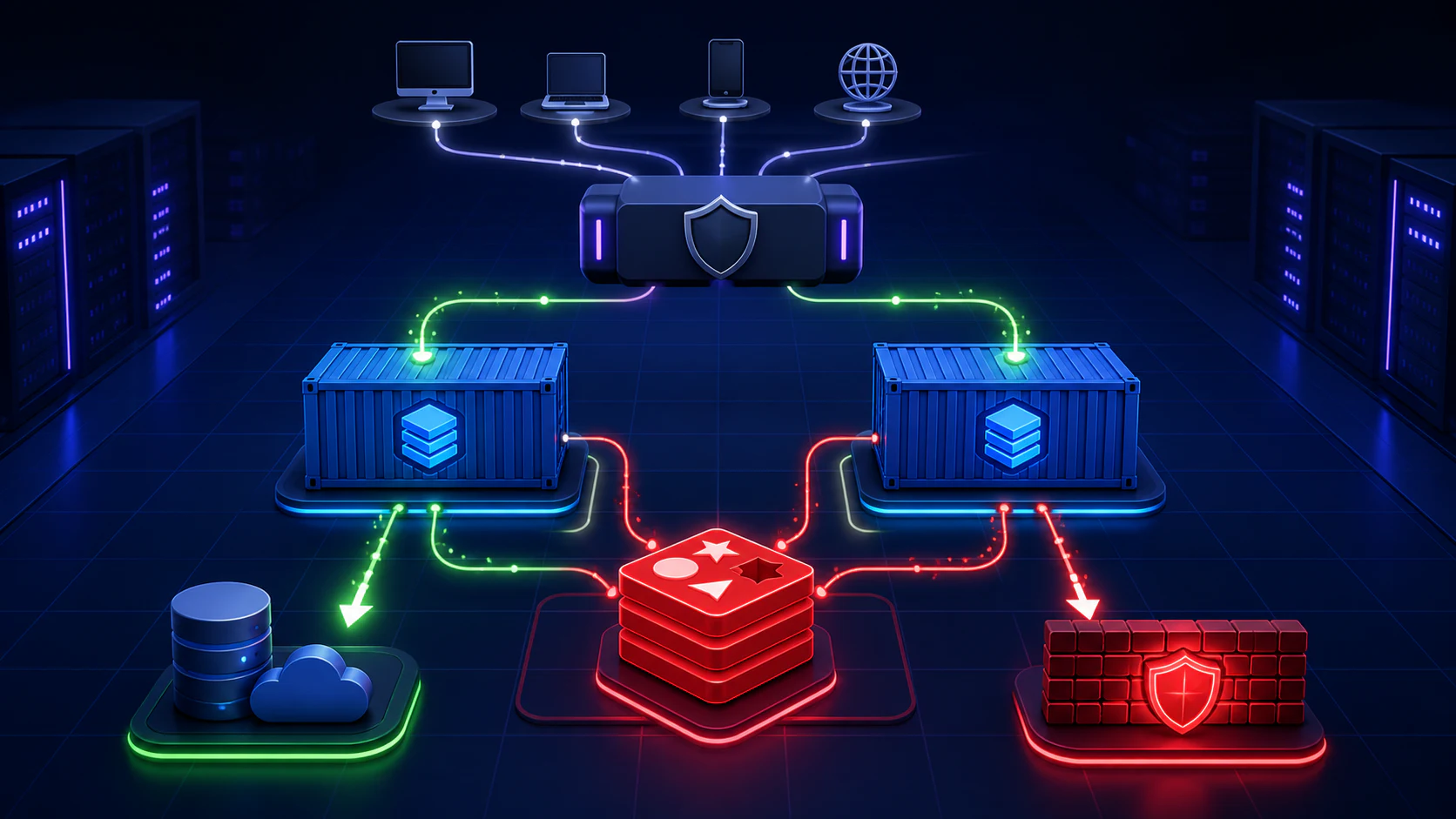

Multi-Instance Rate Limiting

In-process counters fragment state: App A may see five requests while App B sees four. A shared Redis counter gives both instances one decision point. Redis availability and latency therefore enter the request path; define timeouts and whether each protected endpoint fails open or closed.

Build a Cached and Rate-Limited Posts API

A production read endpoint can combine both patterns without confusing them: enforce the endpoint's policy, check Redis, query PostgreSQL on a miss, cache safe output with a freshness-based TTL, then return. The limiter counter and posts cache use different namespaces and lifecycles.

export async function GET(request: Request) {
  const identity = await getReadLimiterIdentity(request)
  const limited = await checkRateLimit(
    'posts-read',
    identity.key,
    getPostsReadPolicy(identity),
  )

  if (!limited.allowed) {
    return Response.json(
      { error: 'Too many requests' },
      { status: 429, headers: { 'Retry-After': String(limited.retryAfter) } },
    )
  }

  const posts = await getPosts()
  return Response.json({ posts })
}

Redis Security

Redis should normally be private to the application network, as built in Blog #21. Do not publish port 6379 to the internet. Use provider-supported TLS for remote or managed connections when required, authentication or ACLs appropriate to the service, least privilege, firewall rules, patched versions, and a server-only URL. Network isolation is helpful but not a substitute for authentication and authorization.

Never log REDIS_URL, credentials, raw session tokens, or secret-bearing errors. Avoid casual use of destructive administrative commands. Invalidation should delete exact, namespaced keys. Review who can execute scripts or administrative commands, and restrict the Docker socket and host as part of the same threat model.

Sessions and Background Queues

Redis for sessions

Some authentication systems support Redis-backed sessions. Do not replace the current provider's storage automatically. Use its documented adapter and random session identifiers, apply expiry, authorize every session, and never store raw passwords or OAuth client secrets in session values.

Redis for queues

Redis can back libraries for email, image processing, AI generation, imports, and reports. A reliable queue needs claiming, acknowledgements, retries, backoff, idempotency, dead-letter handling, monitoring, and shutdown behavior beyond a casual list push. The next article will cover background jobs; no nonexistent Blog #23 link is created here.

Memory, Eviction, and Persistence

Set memory limits from observed value size, key count, client buffers, fragmentation, persistence overhead, and host capacity. When a limit is reached, the configured eviction policy decides whether eligible keys are removed or writes fail. No one policy suits both disposable cache keys and important session or queue state.

Cache-only Redis may use no persistence when all data is safely rebuildable. Sessions, queues, or coordination state may require RDB snapshots, AOF, replication, and tested recovery. Persistence is not the same as a backup, and eviction-enabled cache semantics can be dangerous for critical state.

Monitor Redis

Track memory usage, fragmentation, evictions, expired keys, hit and miss counts, command latency, errors, connections, blocked clients, persistence health, and key growth. Cache hit ratio is hits divided by total lookups; a low ratio may mean the cache key, TTL, workload, or the decision to cache is poor. There is no universal target.

Break metrics down by purpose and namespace where tooling permits it. An overall hit ratio can hide an excellent posts cache beside a useless one-off user cache. Record safe application counters for cache hit, miss, bypass, parse failure, and source fallback without logging a private identifier or cached value. For rate limiting, observe allowed and blocked decisions, Redis errors, decision latency, endpoint, and broad policy name—not credentials or sensitive identities.

Alert on sustained memory pressure, unexpected evictions, connection growth, latency spikes, persistence errors, and sudden changes in denial rate. Dashboards do not replace response plans: document how to disable a faulty cache safely, adjust policy through controlled configuration, restore Redis when it owns important state, and verify that PostgreSQL or an upstream API can tolerate cache-bypass traffic.

Common Next.js Redis Mistakes

Next.js 16 Redis Best Practices

• Add Redis only for a clear measured need.
• Reuse the existing supported client and provider architecture.
• Keep Redis access and REDIS_URL server-side.
• Use predictable namespaced keys without secrets.
• Scope private cache values to the authorized user or tenant.
• Set TTLs from freshness requirements.
• Invalidate exact Redis keys after successful writes.
• Coordinate Redis deletion with Next.js cache revalidation.
• Use atomic Redis operations or a maintained limiter library.
• Use shared Redis for multi-instance rate limits.
• Return HTTP 429 and a correct retry signal when enforcing a limit.
• Derive limiter identity from the real proxy and authentication model.
• Protect Redis from public exposure and patch it regularly.
• Choose persistence and eviction according to the stored state.
• Monitor memory, evictions, latency, errors, and cache usefulness.
• Follow current Next.js, Redis, client, and provider documentation.

Frequently Asked Questions

Current Official References

• Redis Node.js client connection guide
• Redis rate limiting guide
• Redis atomic counters and limiter patterns
• Redis persistence
• Redis security
• Next.js self-hosting and multi-instance cache coordination
• Next.js custom cache handlers

Next Steps

You now have a safe decision model for application caching, TTLs, write invalidation, atomic shared rate limits, proxy-aware identities, persistence, eviction, and Redis operations. Use the patterns only where the measured benefit outweighs another stateful production service.
