Next.js 16 Docker Compose Production Stack

In Blog #20, we deployed a Next.js container behind Traefik. Now we will expand that educational architecture into a complete application stack by adding PostgreSQL and Redis through Docker Compose. The database layer reuses the server-only Drizzle approach from Blog #19; moving PostgreSQL into a container changes the hostname, not the application data architecture.

1. Blog #20Docker + TraefikPublished
2. Blog #21Compose + Data ServicesCurrent
3. Blog #22Redis Caching + Rate LimitingPublished

Production Stack at a Glance

Traefik is the optional public edge. The app joins both the proxy network and a private data network; PostgreSQL and Redis join only the data network. PostgreSQL holds relational records, while Redis handles only clearly chosen fast or shared state.

Why Docker Compose?

Compose defines services, networks, volumes, health checks, environment inputs, and restart behavior in one reviewable model. Service names provide DNS discovery, named volumes outlive containers, and consistent commands make a local or one-host self-managed stack repeatable.

Project Architecture

project/
|-- app/
|-- db/
|-- Dockerfile
|-- compose.yaml
|-- .dockerignore
|-- .env.example
`-- package.json

If Traefik already runs in shared infrastructure, keep it there. Attach the app to its existing external proxy network instead of creating a second proxy or certificate resolver.

Next.js, PostgreSQL, and Redis Services

Reuse the standalone production image from Blog #20. Pin and test image patches or digests in the real deployment. This readable example uses PostgreSQL 18 and Redis 8 major lines. PostgreSQL 18 changed the official image volume target to /var/lib/postgresql; version 17 and older use /var/lib/postgresql/data.

services:
  app:
    image: ghcr.io/OWNER/nextjs-app:${IMAGE_TAG}
    restart: unless-stopped
    env_file: [.env.production]
    expose: ["3000"]
    networks: [proxy, data]
    depends_on:
      postgres:
        condition: service_healthy
      redis:
        condition: service_healthy
    healthcheck:
      test: ["CMD", "node", "-e", "fetch('http://127.0.0.1:3000/api/health').then(r=>{if(!r.ok)process.exit(1)}).catch(()=>process.exit(1))"]
      interval: 30s
      timeout: 5s
      retries: 3
      start_period: 20s

  postgres:
    image: postgres:18-alpine
    restart: unless-stopped
    environment:
      POSTGRES_DB: ${POSTGRES_DB}
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_PASSWORD_FILE: /run/secrets/postgres_password
    secrets: [postgres_password]
    volumes:
      - postgres_data:/var/lib/postgresql
    networks: [data]
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U $${POSTGRES_USER} -d $${POSTGRES_DB}"]
      interval: 10s
      timeout: 5s
      retries: 5
      start_period: 30s

  redis:
    image: redis:8-alpine
    restart: unless-stopped
    command: ["redis-server", "--appendonly", "yes"]
    volumes:
      - redis_data:/data
    networks: [data]
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 10s
      timeout: 3s
      retries: 5
      start_period: 10s

networks:
  proxy:
    external: true
  data:
    internal: true

volumes:
  postgres_data:
  redis_data:

secrets:
  postgres_password:
    file: ./secrets/postgres_password.txt

This publishes no 5432 or 6379 host ports. expose documents the app's internal port but is not a firewall; network membership and host rules define reachability. The Redis probe fits this unauthenticated educational configuration. If authentication is enabled, adapt both client and probe without leaking the credential.

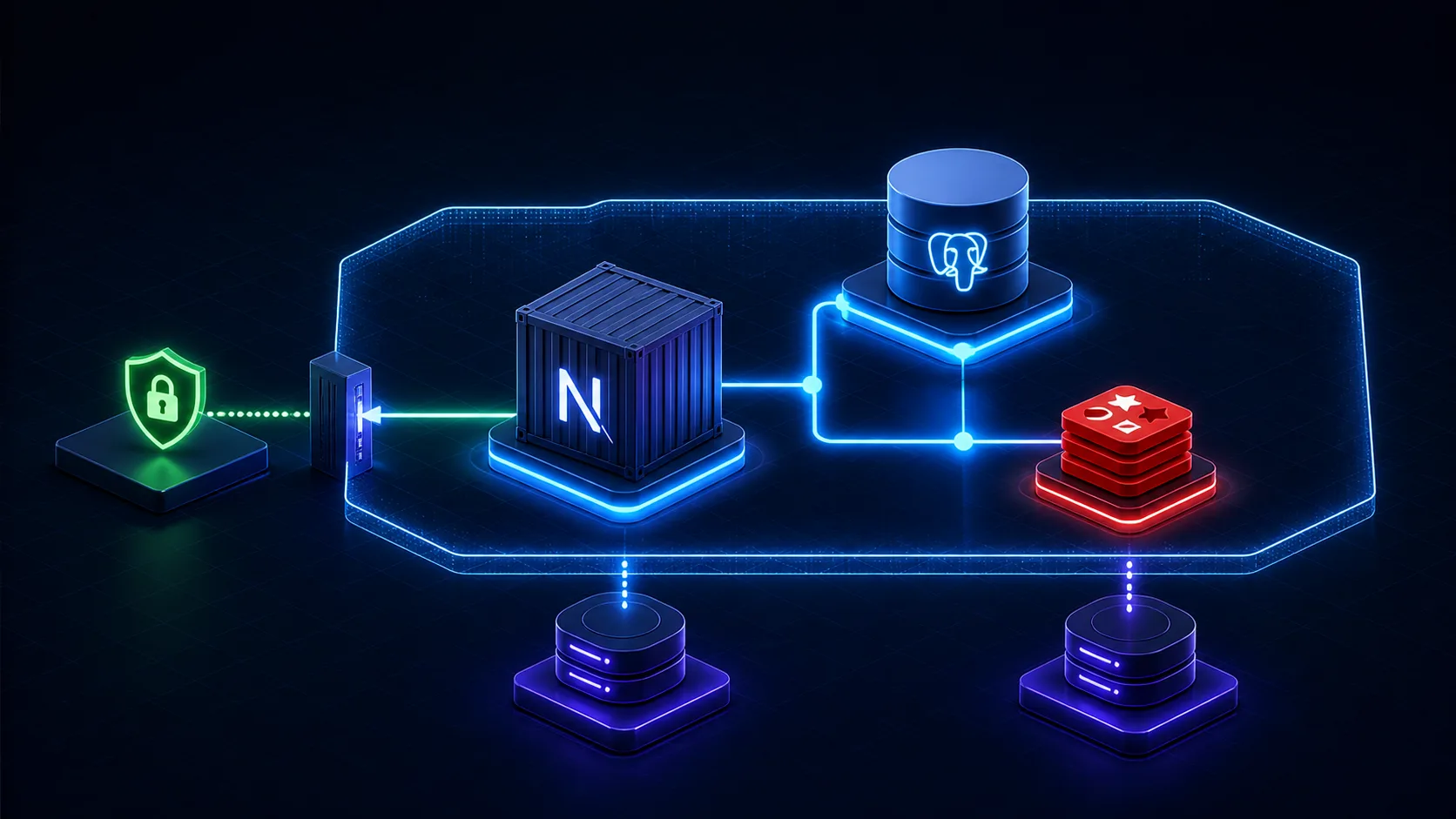

Docker Networking and Service Discovery

Containers do not use localhost to reach each other. Inside the app container, localhost means the app itself. Compose DNS resolves postgres and redis because those are service names on the shared data network.

Environment Variables and Secret Flow

Keep DATABASE_URL, REDIS_URL, and AUTH_SECRET server-side, as explained in Blog #16. Never create NEXT_PUBLIC_DATABASE_URL or NEXT_PUBLIC_REDIS_URL. Commit an empty .env.example, not production values.

DATABASE_URL=postgresql://APP_USER:APP_PASSWORD@postgres:5432/APP_DB
REDIS_URL=redis://redis:6379
AUTH_SECRET=
POSTGRES_DB=APP_DB
POSTGRES_USER=APP_USER
IMAGE_TAG=replace-with-release-tag

PostgreSQL and Redis Persistence

A named volume separates data from a container lifecycle. Recreating PostgreSQL can leave its volume intact, but deleting the volume, losing the disk, corruption, operator error, or host failure can still destroy data. Schedule backups, encrypt and retain copies away from the host, and practice restoration.

Redis supports RDB snapshots, AOF logging, both, or no persistence. Cache-only data may be safely rebuildable. Sessions, queues, rate-limit state, or coordination may have stricter recovery requirements. A Redis volume does not decide this policy by itself.

Health Checks, Startup Order, and Migrations

Short-form depends_on orders startup but does not mean a dependency accepts queries. Long-form condition: service_healthy waits for the declared probe. Applications should still retry transient connections with bounded backoff because dependencies can restart later. Implement a small public liveness response with the safe server boundary from Blog #10: Route Handlers; do not return credentials or detailed dependency errors.

Do not run migrations during next build or in every replica. Reuse the Drizzle configuration from Blog #19, review SQL, confirm a restorable backup, run one controlled release task, then deploy compatible code.

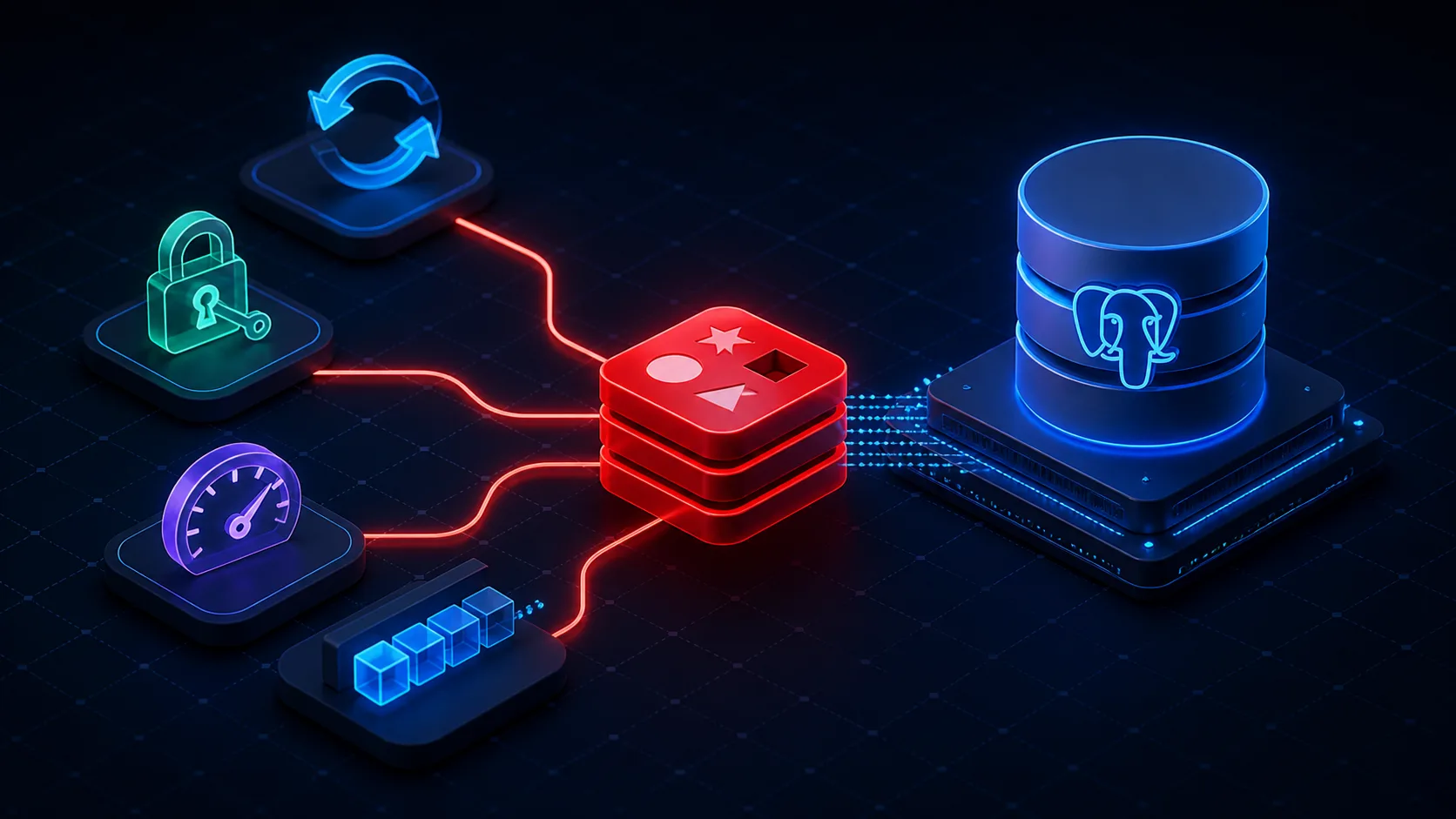

Redis Caching Patterns

Redis application caching is separate from the Next.js framework cache in Blog #8. A cache-aside path checks Redis, loads the database or API on a miss, stores a scoped result with an appropriate TTL, and returns it. Choose expiration from business freshness needs; there is no universal TTL.

Use predictable keys such as posts:list and post:123. Scope private entries to the authorized user or tenant, never put secrets in key names, monitor memory, and design invalidation. Solve cache stampedes only when measurement shows the need.

Traefik and Multi-Instance Next.js

If Traefik owns the proxy network, add only the app to it and keep data services isolated. Point the router at port 3000 and avoid publishing the app port. For multiple Next.js instances, a generic Redis cache does not automatically coordinate framework revalidation. Current self-hosting guidance requires a compatible cache handler and tag coordination.

Production Security and Attack Surface

Keep Redis and PostgreSQL private, patch images and the host, run the app as non-root, restrict Docker socket access, protect secrets, use least-privilege database roles, apply Redis ACLs/authentication where appropriate, encrypt untrusted network traffic, and size resource limits from observed workloads. Network isolation helps but does not replace the session and authorization controls in Blog #13: Authentication, backups, or monitoring.

Backups, Resources, Logs, and Monitoring

Measure application behavior using the principles in Blog #14: Performance Optimization, and make recovery and rollback part of the release process from Blog #15: Deployment.

Common Docker Compose Errors

Best Practices

• Audit existing managed services, networks, proxy, ORM, and Redis client before adding containers.
• Use immutable app tags and pinned, regularly updated data-service versions.
• Keep PostgreSQL and Redis off public host ports.
• Use service DNS names, not localhost or container IP addresses.
• Keep connection URLs server-side and never log credential values.
• Use health-aware dependencies plus runtime retries.
• Mount the data path matching the pinned official image major.
• Treat volumes as persistence, not backups.
• Run reviewed migrations exactly once per release.
• Add Redis only with TTL, invalidation, memory, and durability decisions.
• Monitor restore ability, not only uptime.
• Validate with docker compose config in the real Next.js repository.

Frequently Asked Questions

Current Official References

• Next.js self-hosting
• Next.js 16 upgrade guide
• Docker Compose startup order
• Compose services
• Official PostgreSQL image
• Official Redis image
• Redis persistence
• Redis security

Next Steps

You now have a production-minded model for a one-host Next.js Docker Compose stack: private service discovery, version-aware PostgreSQL storage, intentional Redis use, health-aware startup, controlled migrations, backups, and a narrow public edge. Apply Redis to real caching and abuse-control needs in Blog #22: Next.js 16 Redis Caching & Rate Limiting.
