GSAP MotionPath Tutorial: Move Elements Along SVG Paths

MotionPathPlugin answers “where should this element travel?” GSAP duration, easing, timelines and ScrollTrigger answer how and when it moves. Unlike DrawSVG from Article #27, MotionPath does not reveal the stroke—it moves a target along it.

1. What Is MotionPathPlugin?

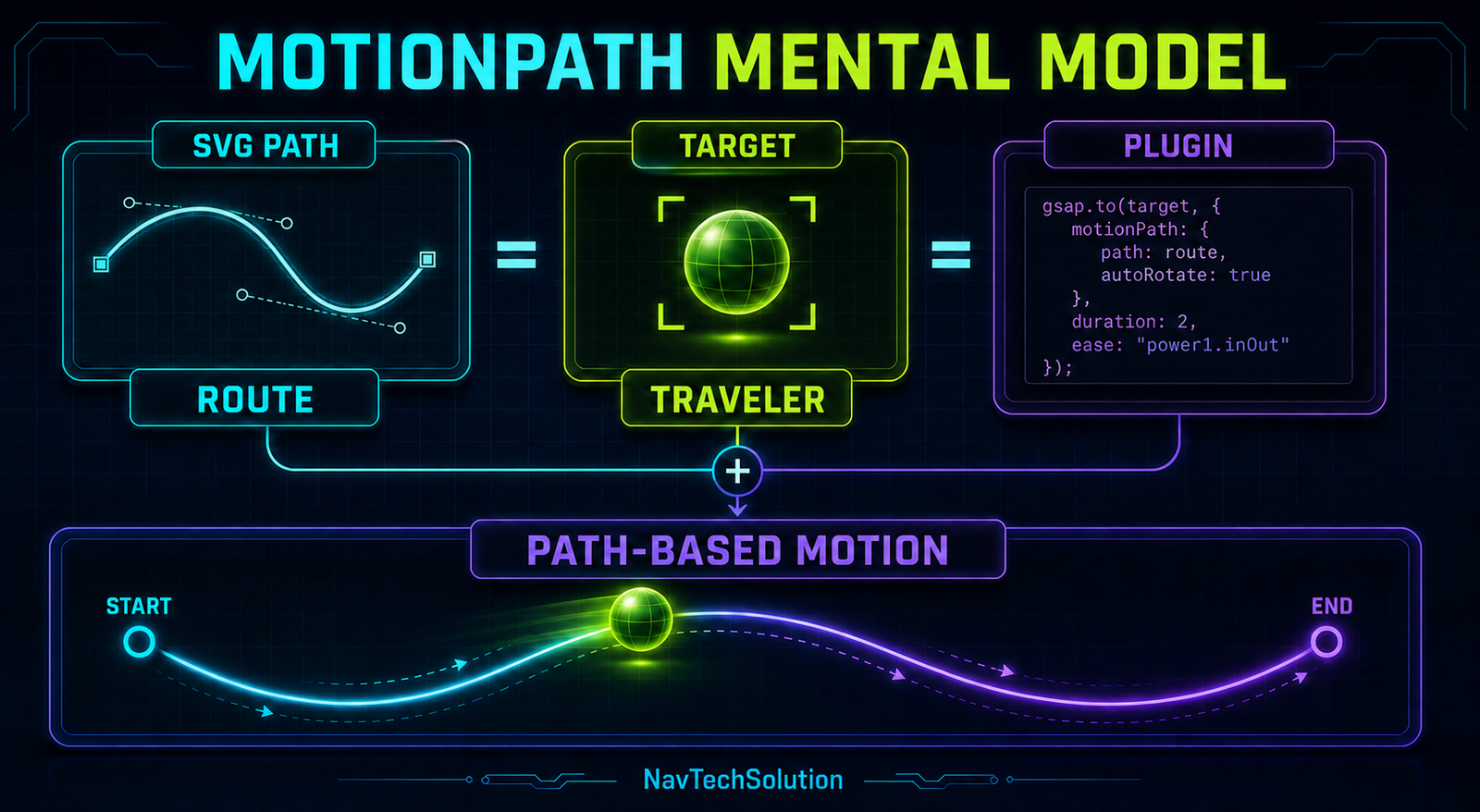

MotionPathPlugin lets GSAP move an HTML or SVG target along a supported path. For a dependable beginner workflow, use an inline SVG path and keep the traveler in the same responsive SVG coordinate system introduced in the SVG animation tutorial, Article #26.

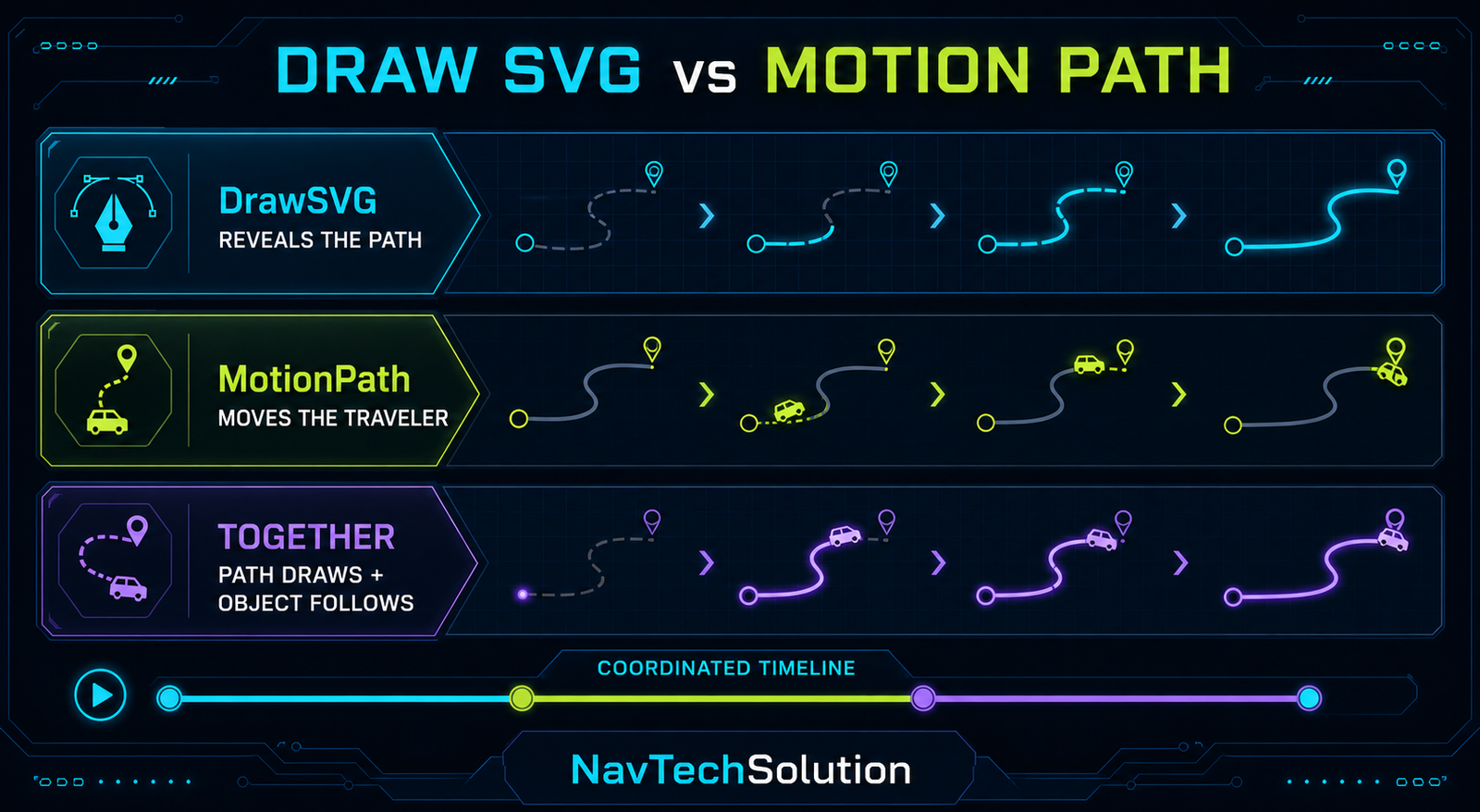

2. DrawSVG vs MotionPath

3. Plugin Setup

This site uses GSAP 3.13.0. The page loads the matching 3.13.0 MotionPathPlugin after core, then the matching ScrollTrigger file used by the scoped scroll demo. Each script appears once.

<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/gsap.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/MotionPathPlugin.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/ScrollTrigger.min.js"></script>

gsap.registerPlugin(MotionPathPlugin, ScrollTrigger);

4. First MotionPath Demo

5. First Animation

gsap.to(traveler, {
  duration: 4,
  ease: "none",
  motionPath: { path: route, align: route, alignOrigin: [0.5, 0.5] }
});

6. Understanding path

path defines the route. It can receive the scoped SVG path node directly, avoiding collisions with another diagram.

7. Straight, Curve and Wave Paths

8. Why ease: "none" Is Useful

Constant timing makes technical travel easy to read. Normal GSAP eases from Article #7 still work: they change timing along the route, not its geometry.

9. Easing Playground

10. autoRotate

With autoRotate: true, an arrow or rocket turns to follow the path tangent. Without it, the target keeps its own orientation.

11. autoRotate Visual

The visual orientation changes; the route geometry does not.

12. autoRotate Demo

13. The Alignment Problem

A target can appear offset when its own coordinate space and the route are not coordinated. align maps the target to the path while alignOrigin chooses which point on the target sits there.

14. align

motionPath: {
  path: route,
  align: route
}

15. alignOrigin

16. Alignment Playground

17. Start and End

Normalized route progress uses 0 for the beginning and 1 for the end. start: 0.25, end: 0.75 travels only through the middle half.

18. Path Progress Graphic

19. Start/End Playground

20. Reverse Motion

start: 1, end: 0 defines backward route direction. tween.reverse() instead reverses the current playback from its playhead.

21. Looping Motion

Reserve infinite travel for small decoration and stop it for reduced-motion users.

22. Yoyo

repeat: 1, yoyo: true plays START → END → START. Yoyo changes playback, not the SVG path.

23. MotionPath + Timeline

Build on the timeline model from Article #10, reuse the player controls from Article #11, and place overlaps with the position parameter from Article #12.

const tl = gsap.timeline({ paused: true });
tl.from(title, { opacity: 0, y: 20 })
  .to(traveler, { duration: 3, motionPath: {
    path: route, align: route, alignOrigin: [0.5, 0.5], autoRotate: true
  }});

24. Timeline Checkpoints

25. Development Workflow Demo

26. MotionPath + DrawSVG

DrawSVG can reveal the route and MotionPath can then move the traveler. This page keeps the example conceptual rather than loading a second premium plugin solely for one demo.

tl.from(route, { drawSVG: "0%", duration: 1.5 })
  .to(traveler, { duration: 3, motionPath: { path: route, align: route } });

27. Draw and Follow Together

A traveler does not automatically follow the currently visible stroke. Coordinate both tweens on the same timeline when they must appear synchronized.

28. MotionPath + ScrollTrigger

This example extends the scoped trigger pattern from the ScrollTrigger tutorial, Article #14.

gsap.to(traveler, {
  ease: "none",
  motionPath: { path: route, align: route, alignOrigin: [0.5, 0.5], autoRotate: true },
  scrollTrigger: { trigger: section, start: "top 80%", end: "bottom 20%", scrub: true }
});

29. Scroll-Driven Traveler

30. Scrub Mental Model

With linear easing and the scrub model from Article #16, animation progress follows scroll progress. Perceived geometric speed can still vary with path shape.

31. ScrollTrigger Start and End

ScrollTrigger start/end from Article #15 define viewport positions. They do not select a portion of the route.

32. Two Different Start/End Systems

33. Multiple Travelers

A timeline or stagger from Article #6 can offset travelers without creating separate timer logic.

34. Convoy Demo

35. Different Paths

Frontend, backend and database packets can each own a route and tween. Scope each selector to its diagram so repeated SVG classes never collide.

36. Technical Architecture Demo

37. API Request Animation

38. GSAP MotionPath Lab

39. Main Lab Controls

Every control maps to a supported MotionPathPlugin 3.13.0 value and rebuilds only this lab’s tween.

40. Main Lab Status

The status cards show the actual configuration used for the current lab tween.

41. Generated Code

The code preview is written with textContent, so control values are never interpreted as HTML.

42. Main Lab Lifecycle

function destroyLabTween() {
  if (labTween) labTween.kill();
  labTween = null;
  gsap.killTweensOf(labTraveler);
}

43. Safe Reset

The lab kills only its traveler tween. It never uses gsap.killTweensOf("*") and never destroys unrelated ScrollTriggers.

44. MotionPath Project: Development Journey

45. Project Animation

One timeline advances the traveler and stage highlights from IDEA to GROW; no random timers are used.

46. Project Scroll Version

The large project remains button-controlled for stability on small screens. The smaller route above demonstrates scrub without pinning the article.

47. MotionPath and Responsive SVG

A stable viewBox plus width: 100%; height: auto preserves the shared route and traveler coordinate system as the graphic scales.

48. Responsive Alignment

These demos keep each traveler and path inside the same SVG, so uniform CSS scaling preserves their internal coordinates. If a breakpoint actually changes path geometry or moves the target into another coordinate space, rebuild or invalidate only that tween after layout; do not repeatedly recalculate alignment on every animation tick.

49. Mobile Strategy

Controls wrap into touch-friendly rows, code scrolls inside its block, labels stay outside the route where practical and the large journey remains in normal page flow.

50. Performance

Cost depends on traveler count, path complexity, active tweens, filters, shadows, DOM size, ScrollTrigger usage and device performance. Test the actual composition rather than assuming one technique is always faster.

51. Preferred Animation Properties

MotionPath primarily produces transform-based movement. Avoid stacking large blur, complex SVG filters and massive animated shadows on many travelers.

52. Accessibility

Motion never carries workflow meaning by itself: stage labels remain readable, meaningful SVGs have labels, controls are real buttons and status changes use restrained live regions.

53. Reduced Motion

When prefers-reduced-motion: reduce matches, long travel and scrub are skipped, looping is disabled and travelers are placed at a meaningful static endpoint while all labels remain visible.

54. Progressive Enhancement

Routes, stages and travelers render without JavaScript. JavaScript only enhances their state after GSAP and both required plugins load successfully.

55. Common MotionPath Mistakes

56. MotionPath Not Working?

1. GSAP loaded?
2. MotionPathPlugin loaded?
3. Plugin registered?
4. Versions compatible?
5. Traveler exists?
6. SVG path exists?
7. Correct scoped selector?
8. Valid path geometry?
9. align correct?
10. alignOrigin correct?
11. autoRotate expected?
12. start/end valid?
13. Old tween running?
14. ScrollTrigger controls same tween?
15. SVG viewBox present?
16. Reduced motion active?
17. Console errors?

57. MotionPath vs DrawSVG

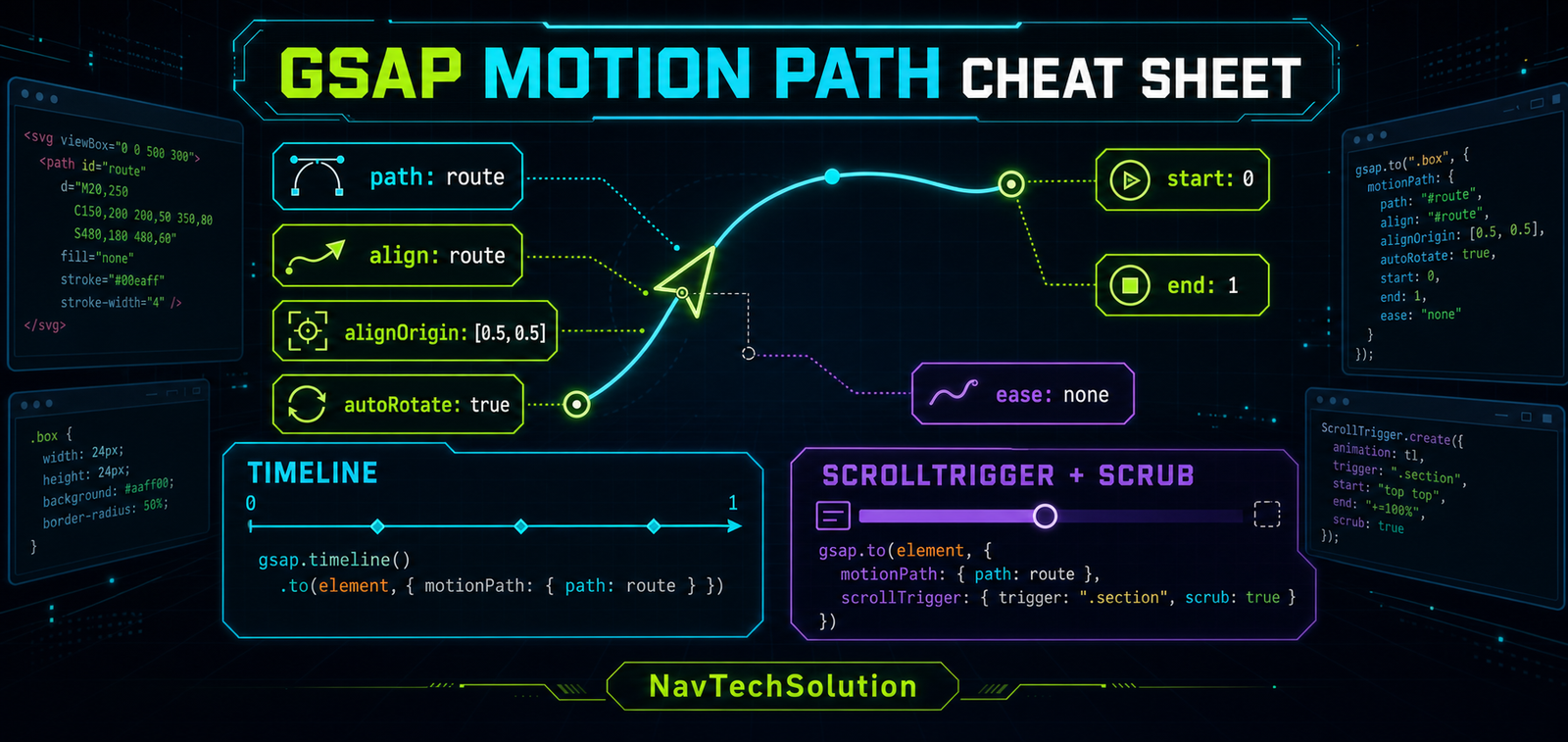

58. Quick Reference

59. Cheat Sheet Graphic

60. Final Mental Model

MotionPathPlugin answers “where should this element travel?” GSAP answers “how and when should it move?”
