GSAP MorphSVG Tutorial: Morph One SVG Shape Into Another

MorphSVGPlugin answers “what geometry should this path become?” In Article #27, DrawSVG revealed a stroke. In Article #28, MotionPath moved a traveler. Here the visible source path itself changes shape.

1. What Is SVG Morphing?

SVG morphing changes vector geometry over time. A circle can become a rounded square, triangle or star because the path’s points and curves interpolate toward new path data. CSS transforms alone cannot perform true path morphing.

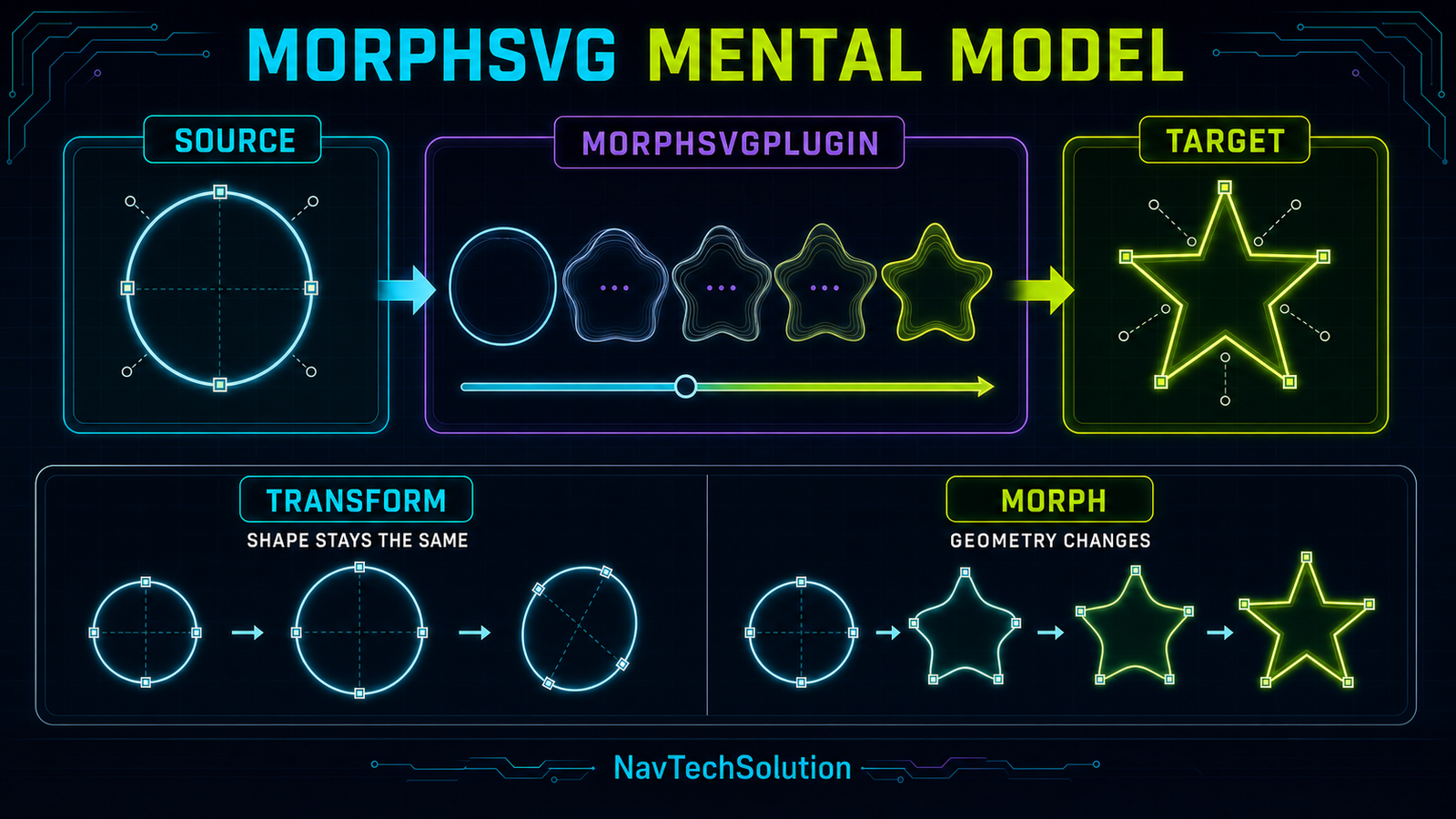

2. Morph vs Transform

3. DrawSVG vs MotionPath vs MorphSVG

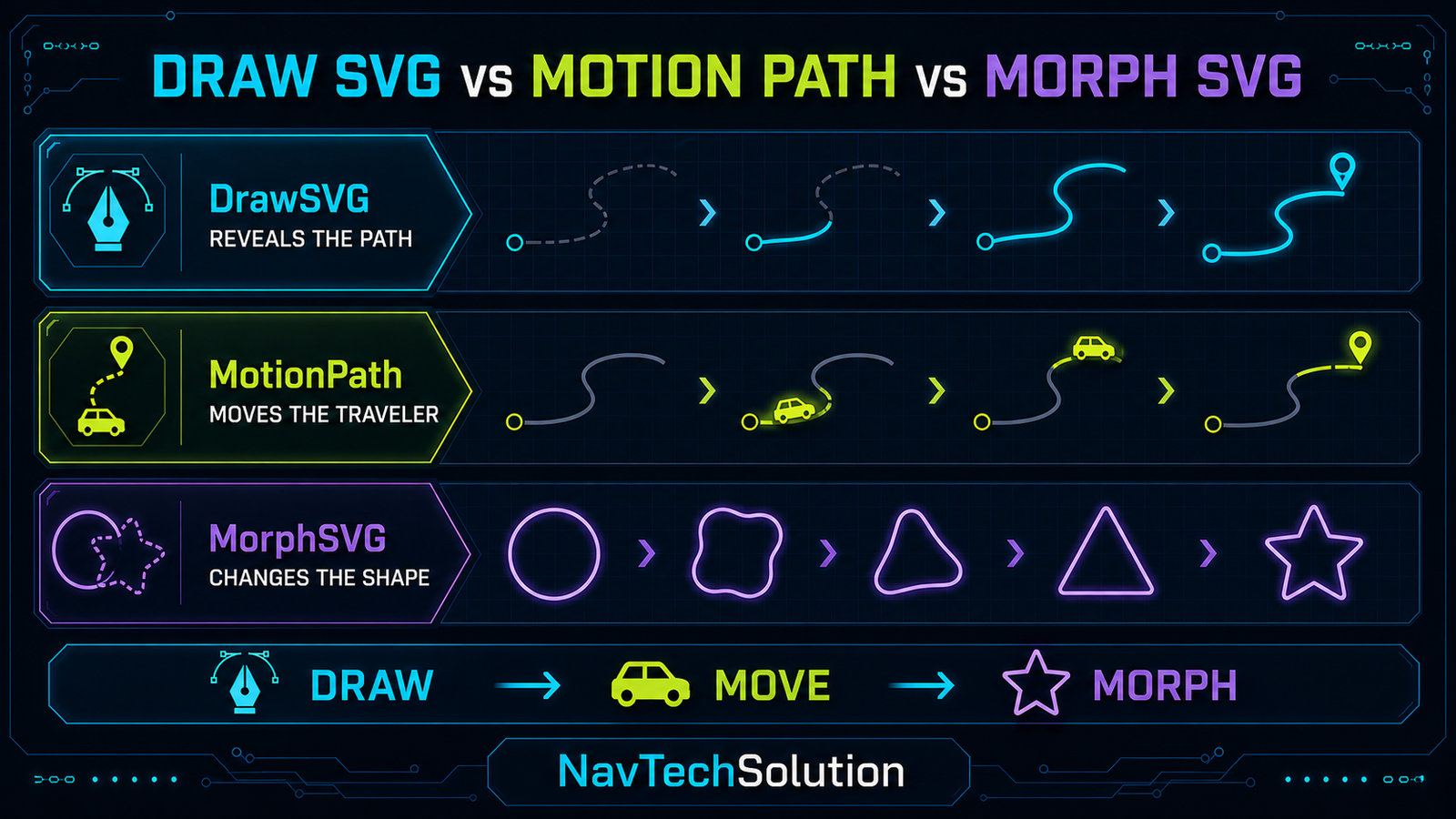

These tools solve different problems: DrawSVG changes stroke visibility, MotionPath changes position along a route, and MorphSVG changes shape geometry.

4. Plugin Setup

The series uses GSAP 3.13.0, when MorphSVGPlugin became freely available with the GSAP package. Load the version-matched plugin once after core and register it before the article script runs.

<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/gsap.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/MorphSVGPlugin.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/ScrollTrigger.min.js"></script>

gsap.registerPlugin(MorphSVGPlugin, ScrollTrigger);

5. First MorphSVG Demo

6. First Morph Animation

gsap.to(source, {
  duration: 1.5,
  morphSVG: target,
  ease: "power2.inOut"
});

7. Source vs Target

8. Target Visibility

The target often exists only as geometry. Keep it in the SVG with visibility="hidden" or a scoped CSS class; animate the source path and do not hide meaningful explanatory content.

9. Why Path Geometry Matters

Paths contain commands, anchors and control points. MorphSVG converts data to compatible cubic curves and adds points when needed, but the original direction and arrangement still influence the journey.

10. Point Correspondence

11. Simple Shape Morph

12. Multi-Shape Morph

13. Morph Timeline

14. Easing and Morphing

Easing controls when interpolation happens; MorphSVG controls what geometry is interpolated. Technical scrubbing usually uses none, while a button-driven icon often feels better with power2.inOut.

15. Morph Easing Playground

16. Understanding shapeIndex

Closed paths can begin their point sequence anywhere. shapeIndex changes which target point corresponds to the source start. It is an offset for point mapping—not simply animation direction.

17. shapeIndex Mental Model

18. Automatic shapeIndex

shapeIndex: "auto" is the current default and calculates a natural mapping. Start there. A numeric value can skip that search and lock a mapping once you have tested the result.

19. shapeIndex Playground

20. Find the Best Morph

1. Start with automatic mapping.
2. Observe the full forward and reverse morph.
3. If the shape twists, inspect path direction and correspondence.
4. Test a small meaningful set of numeric indices.
5. Keep the mapping that expresses the intended transition.

21. Shape Conversion

MorphSVG can internally interpret common SVG shapes. MorphSVGPlugin.convertToPath() is useful when your workflow benefits from an explicit path in the DOM.

22. Why Convert to Path?

Circles, rectangles, ellipses, lines, polygons and polylines can become path elements. Conversion is helpful, not mandatory for every morph.

23. Conversion Demo

24. Icon Morphing

Icon morphing can reinforce an interface state, but semantics must remain in the button label and ARIA state.

25. Menu to Close Demo

26. Play to Pause Demo

27. Status Icon Morph

28. Abstract Logo-Style Morph

29. Multi-Stage Morph

30. MorphSVG + Timeline

tl.to(shape, { morphSVG: shape2 })
  .to(shape, { rotation: 90 }, "<")
  .to(shape, { morphSVG: shape3 })
  .to(shape, { scale: 1.1 }, "<");

31. Morph + Transform

MorphSVG can change path geometry while GSAP changes x, y, scale, rotation or opacity. Keep combined movement restrained so viewers can still read the geometry change.

32. MorphSVG + DrawSVG

This article does not load DrawSVGPlugin. In a combined project, load it once and coordinate separate draw and morph tweens in one timeline.

33. MorphSVG + MotionPath

MotionPath moves the target first; MorphSVG can change it on arrival. MotionPathPlugin is intentionally not loaded on this page.

34. MorphSVG + ScrollTrigger

gsap.to(shape, {
  morphSVG: target,
  ease: "none",
  scrollTrigger: {
    trigger: section,
    start: "top 80%",
    end: "bottom 30%",
    scrub: true
  }
});

35. Scroll-Driven Morph

36. Morph + Scrub

Without scrub, crossing the start boundary starts an ordinary tween. With scrub, scroll progress controls morph progress, including the intermediate geometry.

37. ScrollTrigger Start/End

38. Reversible Scroll Morph

A scrubbed tween naturally reverses as the reader scrolls upward. Do not create another tween for reverse scrolling.

39. Main MorphSVG Lab

40. Main Lab Controls

Change one variable at a time. Target chooses geometry; duration and ease control timing; shapeIndex controls point correspondence; rotation is an ordinary transform.

41. Main Lab Status

The status row repeats the active settings in text so the experiment is not communicated through shape or motion alone.

42. Generated Code

The lab writes the equivalent scoped tween below its controls. Copy the pattern, then replace the selectors with references from your own component.

43. Lab Lifecycle

Before rebuilding the lab tween, its own tween is killed. The page never calls a global kill method and never removes another article’s ScrollTrigger.

44. Resetting SVG Geometry

The lab stores the source d value. Restart restores that exact geometry before creating a fresh tween, preventing one experiment from contaminating the next.

45. Main Mini Project

46. Project Shapes

Every target is an original abstract path in the same viewBox. The visible source remains one path throughout the project.

47. Project Timeline

A single paused timeline morphs IDEA → DESIGN → BUILD → DEPLOY and updates the text stage at the same labelled positions.

48. Project Controls

Play, pause, reverse and restart operate on the same timeline, so state remains predictable and keyboard accessible.

49. Responsive SVG Morphing

50. Shape Complexity

More points mean more path calculations and more rendering work. Simplify exported artwork and avoid animating many complex full-screen morphs simultaneously.

51. Path Direction

Clockwise and counter-clockwise paths can map differently. If automatic mapping twists, inspect direction before forcing an arbitrary large shapeIndex.

52. Common Morph Problems

53. Performance

• Keep visible path geometry as simple as the design allows.
• Reuse one source instead of layering duplicate visible targets.
• Scope tweens and store references for cleanup.
• Use a numeric shapeIndex only after testing it.

54. Mobile Strategy

Let controls wrap, preserve a stable viewBox, keep buttons at least touch-friendly height and avoid scroll-pinning the main lab on small screens.

55. Reduced Motion

const reduced = matchMedia("(prefers-reduced-motion: reduce)").matches;
if (reduced) tween.progress(1).pause();

56. Accessibility

Use real buttons, visible focus, meaningful SVG labels and live text status. A morph may decorate or reinforce state, but must not be the only way a user learns that state.

57. Progressive Enhancement

Before JavaScript loads, the source SVG and every explanation remain visible. Target geometry is hidden only because it is implementation data.

58. Common Mistakes

1. Loading GSAP or MorphSVGPlugin twice.
2. Animating the hidden target instead of the visible source.
3. Calling shapeIndex “direction”.
4. Using unscoped selectors across several demos.
5. Recreating ScrollTrigger or ScrollSmoother globally.
6. Relying on motion alone for status.

59. Debugging Checklist

60. Quick Reference

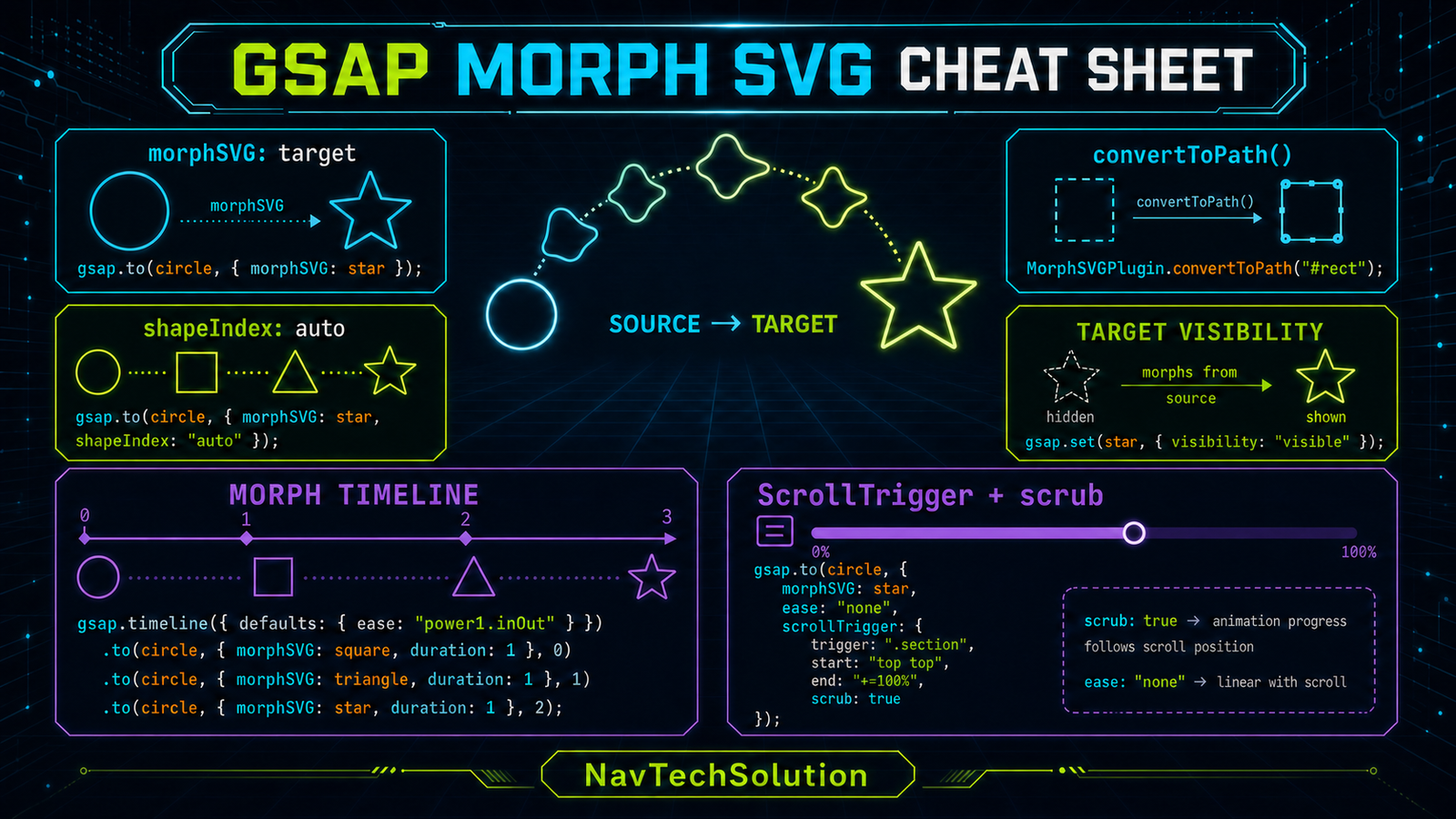

61. Cheat Sheet Graphic

62. Final Mental Model

63. Blog #30 Preview
