GSAP ScrollTrigger Batch: Animate Large Groups of Elements Efficiently

Animating one card is simple. Animating dozens of repeated cards becomes easier to reason about when nearby entries are collected into callback groups. ScrollTrigger.batch() gives you that grouping layer; GSAP still owns the animation.

1. The Repeated-Element Problem

A services grid may contain twelve cards with the same reveal. Building custom callback logic for every card adds repetition without adding meaning.

2. What Is ScrollTrigger.batch()?

It creates coordinated ScrollTriggers for repeated targets and accumulates elements that hit the same callback near one another. The callback receives the collected array.

3. Batch Mental Model

4. Register ScrollTrigger Once

gsap.registerPlugin(ScrollTrigger);

This project uses GSAP 3.13.0 and loads GSAP plus ScrollTrigger once at the end of this page.

5. Your First Batch Reveal

ScrollTrigger.batch(".card", {
  start: "top 85%",
  onEnter: (batch) => gsap.to(batch, {
    autoAlpha: 1,
    y: 0,
    stagger: 0.1
  })
});

6. Understanding onEnter

onEnter fires while scrolling forward when targets cross start. The parameter is an array, even when the group contains one element.

7. The Batch Array

8. Batch + Stagger

The stagger tutorial controls how animation start times are distributed after batching has already selected the group.

9. Batch vs Stagger

10. A Safe Initial State

Normal CSS leaves cards visible. JavaScript adds .batch-ready only after GSAP is available, then sets scoped starting properties.

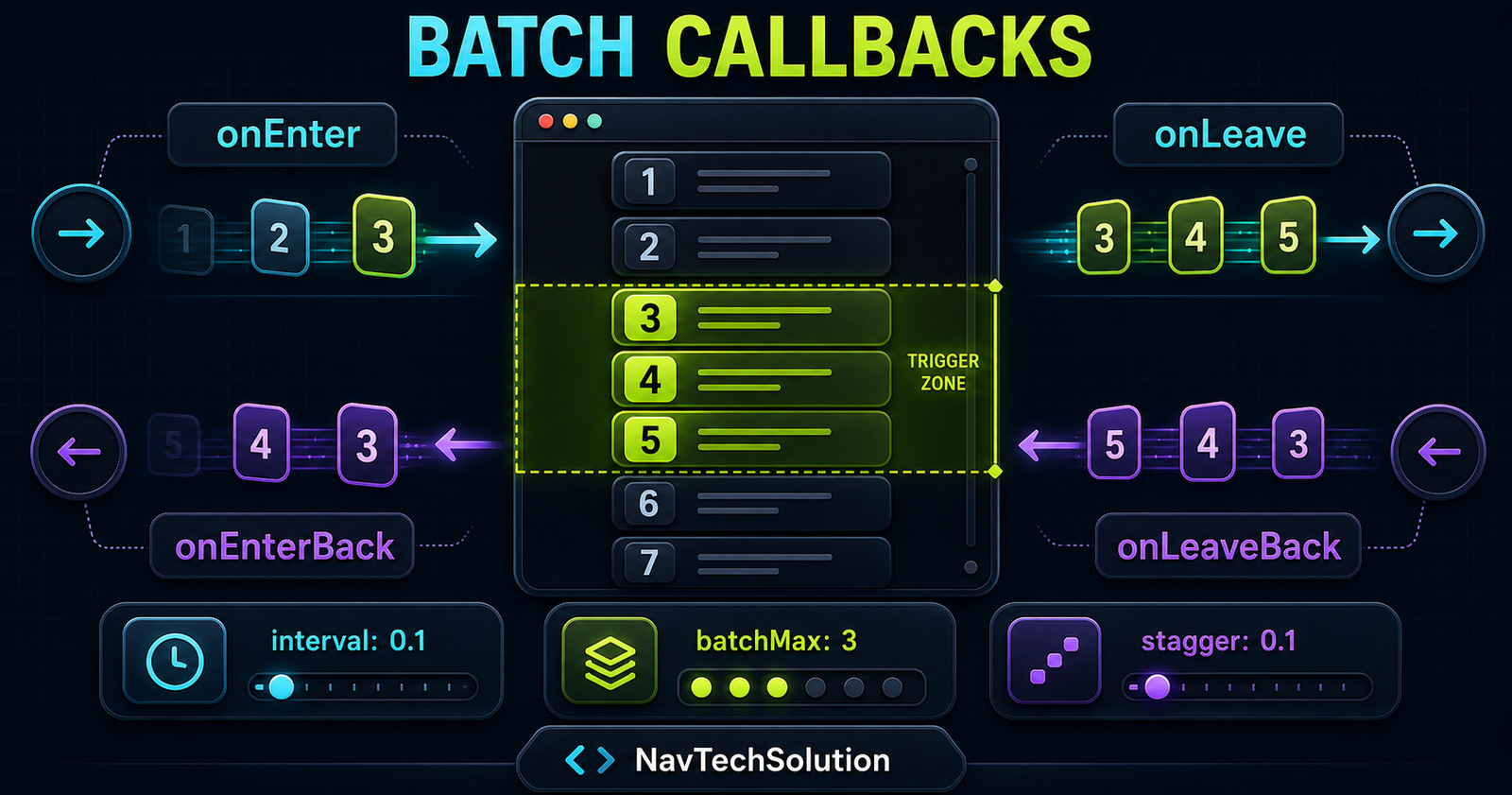

11. Four Callback Directions

12. onLeave

Use it for non-essential exit effects. Avoid hiding important cards simply because they move beyond the viewport.

13. onEnterBack

Reverse scrolling can restore a prior state or replay a restrained reveal.

14. onLeaveBack

This fires when an element exits through the start boundary while moving upward.

15. Reveal Once

For content cards, a one-time reveal is usually calmer and keeps focusable children visible after their first entry.

ScrollTrigger.batch(cards, {
  once: true,
  onEnter: (batch) => gsap.to(batch, {
    autoAlpha: 1, y: 0, stagger: 0.08,
    overwrite: true
  })
});

16. Understanding interval

interval is the maximum time window used to collect callback targets. It does not set the visual delay between card animations.

17. Interval Playground

Fast scrolling can place more entries inside one collection window. Slow scrolling may produce smaller groups; that is expected.

18. Understanding batchMax

batchMax: 3 limits each delivered group to three elements. It does not restrict the total grid size.

19. Dynamic batchMax

Use a function when the desired size depends on current layout, and refresh after meaningful layout changes.

20. Interval + batchMax

The first controls collection time; the second caps group size. Test the combination with real scroll speeds.

21. Why Batch Size Varies

Viewport height, card size, grid columns, scroll velocity and the interval all affect which items cross near one another.

22. Technology Grid

23. Service Cards

24. Gallery Tiles

25. List Rows

26. Scoped Selectors

Query each demo from its own root. Generic site-wide selectors can accidentally include cards from navigation, related posts or the footer.

27. Batch Start Position

start: "top 85%" means the card top meets a viewport line 85% from the top. Review the start and end guide for the coordinate model.

28. Start Playground

Use the main lab below to compare 70%, 80%, 85% and 90% without rebuilding unrelated triggers.

29. Batch Is Not a Timeline Replacement

A timeline organizes sequencing. Batch organizes repeated callback groups. Combine them only when a group needs a genuine multi-step sequence.

30. Batch Is Not Scrub

Batch is callback-based. Scrub maps continuous scroll progress to animation progress.

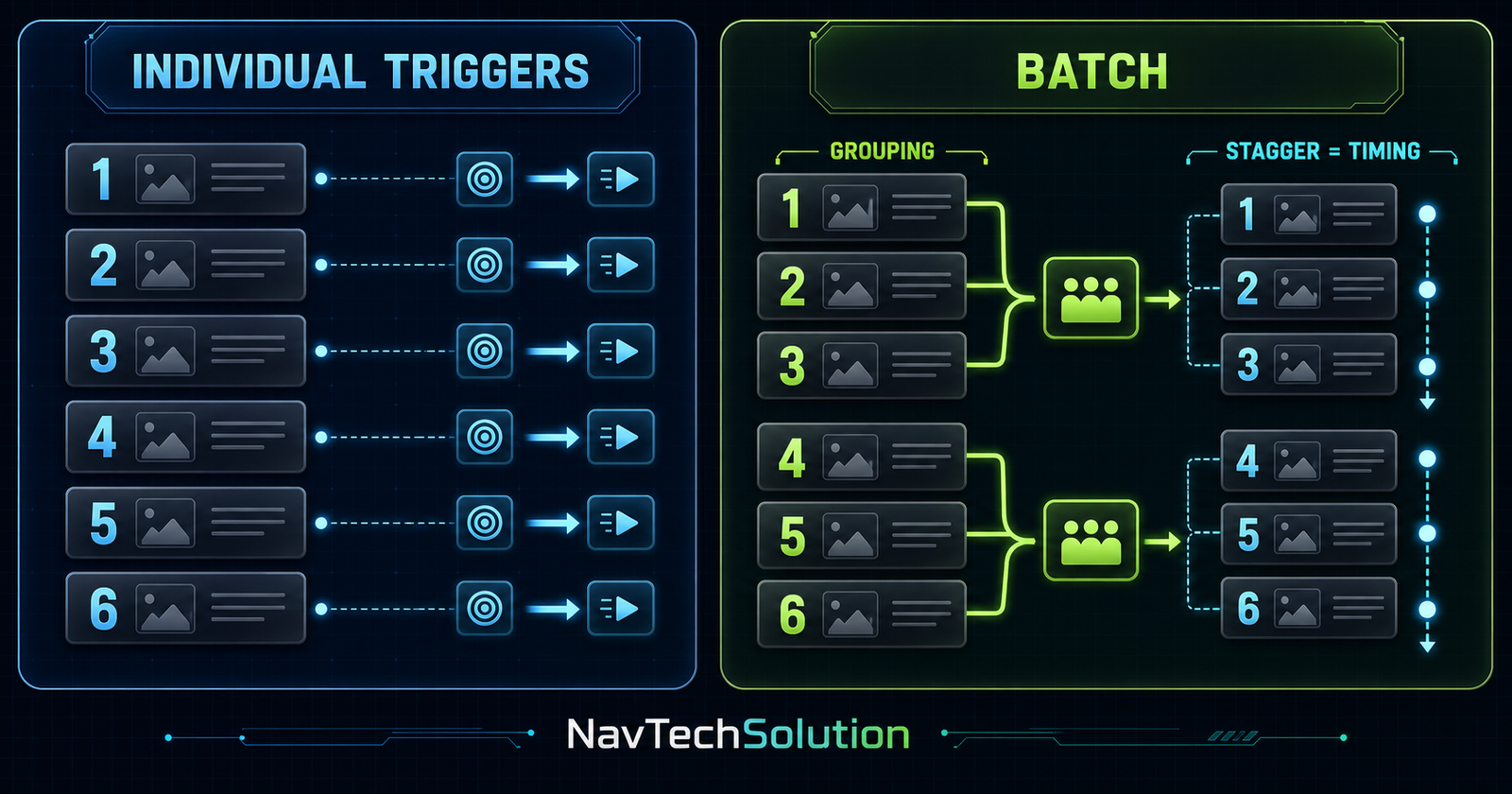

31. Batch vs Individual ScrollTriggers

32. GSAP ScrollTrigger Batch Lab

33. Main Lab Controls

Every control rebuilds only the lab. Defaults are batchMax: 3, interval: 0.1, stagger: 0.1 and start: "top 85%".

34. Real Runtime Status

The status and callback inspector update from the actual callback array rather than a decorative timer.

35. Replay Without Global Cleanup

Replay kills only the lab triggers and tweens, resets only its cards, then rebuilds the batch without jumping the page.

36. Lab Lifecycle

function destroyBatchLab() {
  labTriggers.forEach((trigger) => trigger.kill());
  labTriggers = [];
  gsap.killTweensOf(labCards);
}

37. Safe Reset

Use gsap.killTweensOf(cards). Never use gsap.killTweensOf("*") or globally kill all ScrollTriggers.

38. Generated Code

The lab’s code panel is rendered with textContent, so current values cannot inject markup.

39. Callback Inspector

The inspector reports the real element numbers and keeps one bounded record instead of flooding the DOM or console.

40. Batch + ScrollSmoother

If the site already has a root smoother, reuse it. This article does not create another instance.

41. Batch + Horizontal Scroll

Blog #23’s horizontal scroll architecture changes coordinate calculations. Keep primary batch examples in normal vertical flow unless translated triggers are deliberately measured.

42. Batch + Timeline

A timeline is optional for a simple reveal, but useful when card, icon, title and description need a meaningful internal sequence.

43. Batch Child Elements

Prefer one card trigger and a small internal sequence rather than excessive nested ScrollTriggers.

44. Performance Depends on the Whole Page

Target count, DOM size, callback work, images, filters, layout calculations and device speed matter. Batch is an organizational tool, not a guaranteed multiplier.

45. Preferred Animation Properties

46. Large Grid Strategy

Use simple transforms, moderate groups, short staggers, optimized images and real-device testing. First ask whether every repeated item needs motion.

47. Mobile Strategy

48. Reduced Motion

When prefers-reduced-motion: reduce is active, the script leaves cards visible and does not make readers wait for staggered entrances.

49. Accessibility

DOM order remains logical, focus never moves automatically, controls are native form controls and animation is only enhancement.

50. Focusable Cards

For linked cards, reveal once and never keep focusable children invisible after they become keyboard reachable.

51. Progressive Enhancement

CSS starts visible. Only a successfully initialized lab receives animation starting states; JavaScript failure still exposes all content.

52. Common Mistakes

53. Debugging Checklist

1. GSAP loaded once
2. ScrollTrigger loaded once
3. Plugin registered
4. Targets exist
5. Selector is scoped
6. Start is reachable
7. Callback fires
8. Batch array has elements
9. Cards are not already final
10. No competing tween owns the property
11. interval is valid
12. batchMax is valid
13. Old local triggers were killed
14. Reduced-motion mode checked

54. Mini Project: NavTechSolution Tech Stack Reveal

55. Mini Project Mental Model

56. Quick Reference

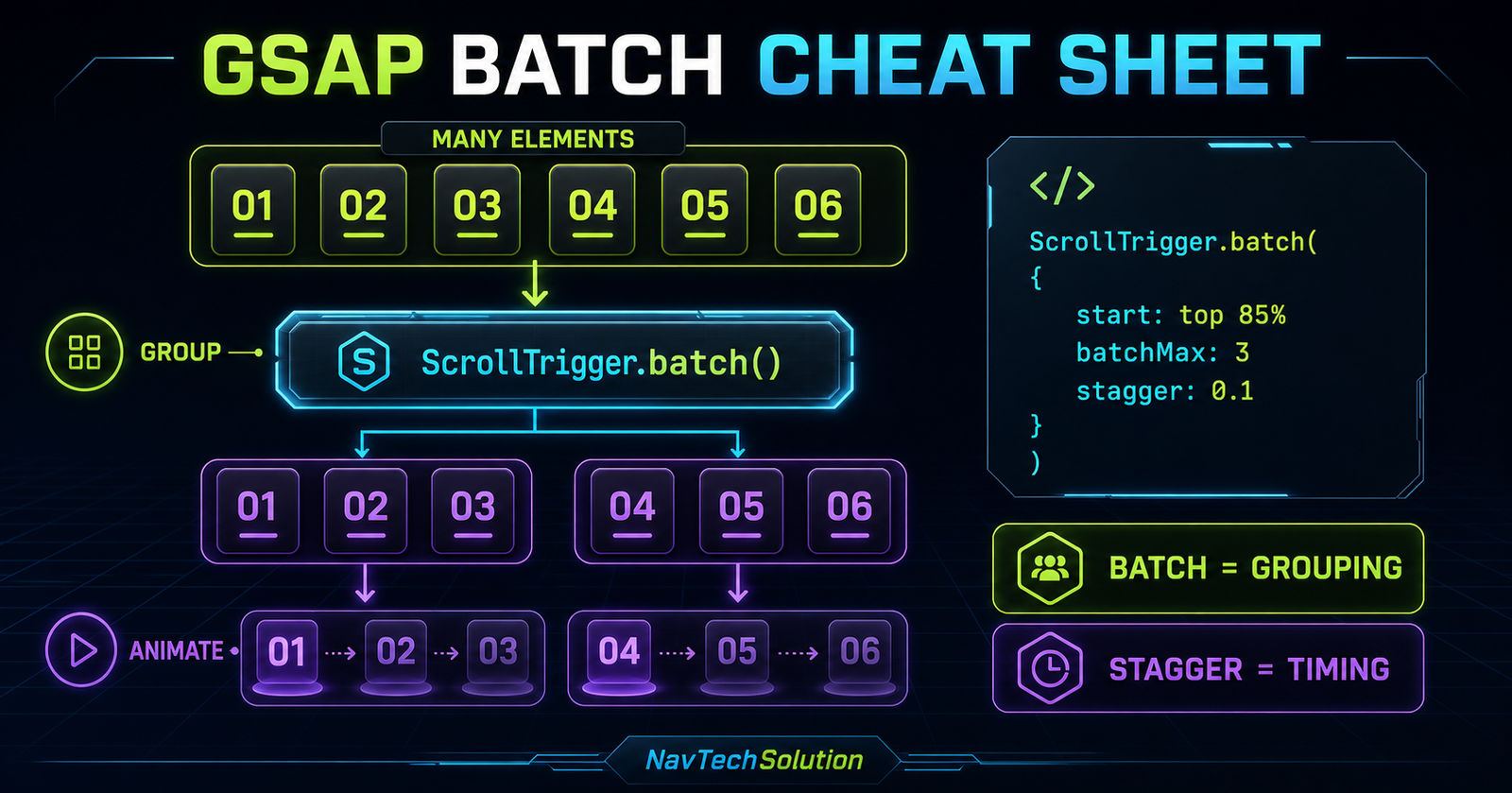

57. Cheat Sheet Graphic

58. Final Mental Model

59. When to Use Batch

Use it for service cards, portfolio grids, galleries, technology tiles, list rows, team cards and repeated blog cards. Use individual triggers when behavior, scrub or boundaries differ per item.

60. Batch Does Not Replace Design Judgment

A grouped reveal should clarify hierarchy and rhythm. If it delays access to content or adds visual noise, keep the cards static.

61. Production Checklist

Scope selectors, keep a local trigger registry, test different scroll speeds, support reduced motion and verify the footer remains reachable.

62. Key Takeaway

63. Frequently Asked Questions

64. Continue to Blog #25
