Three.js OrthographicCamera: The Complete Guide

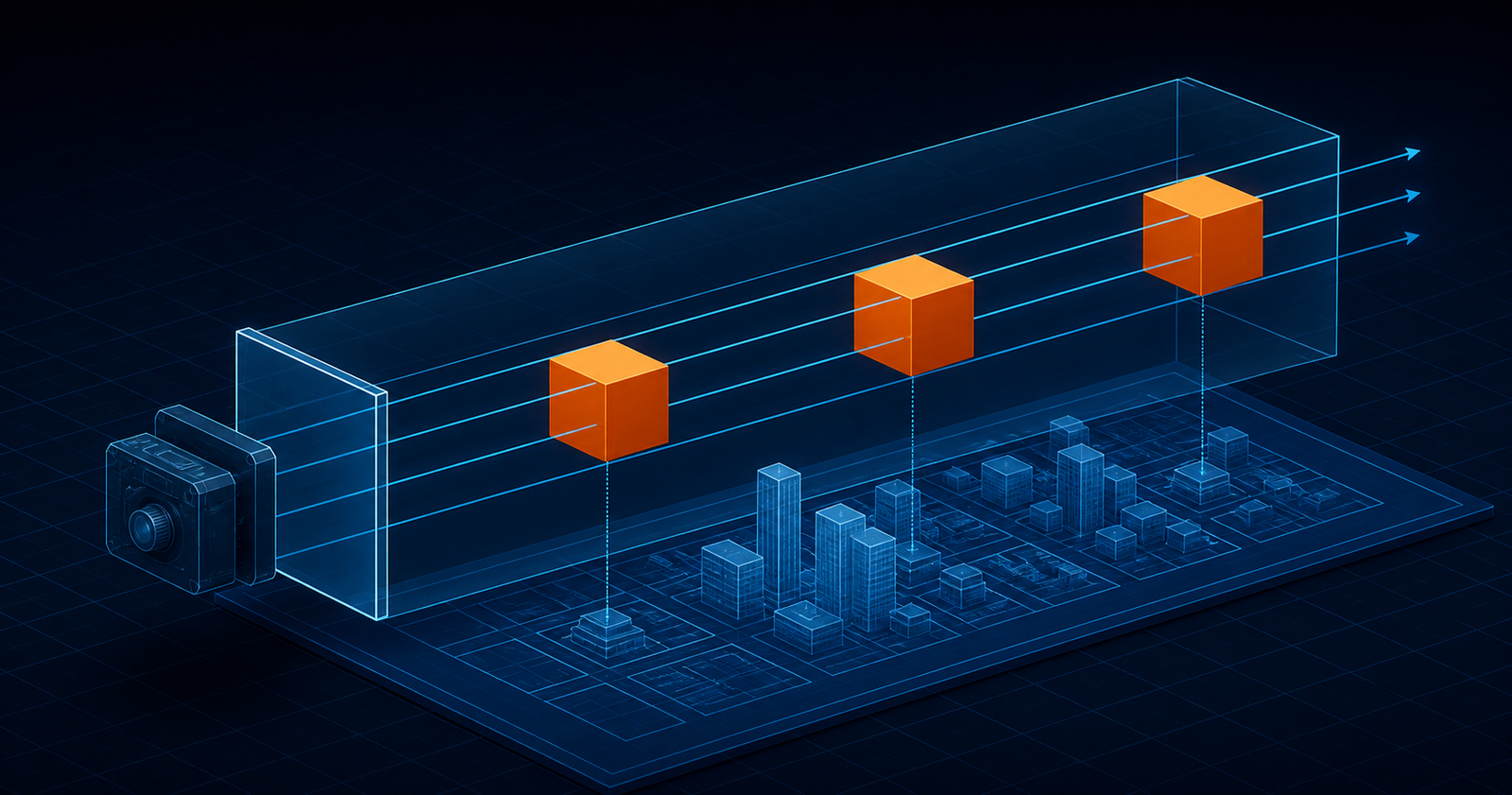

An orthographic camera shows 3D space without perspective scaling. A cube far from the camera appears the same size as an identical cube close to it. Parallel lines stay parallel, measurements remain visually consistent, and the result feels more like a blueprint, map, or technical drawing than a photograph.

That makes THREE.OrthographicCamera ideal for 2D and isometric games, map views, CAD-style tools, data visualization, user-interface overlays, and any scene where scale matters more than realistic depth.

1. How orthographic projection works

Orthographic projection removes perspective size reduction, but the scene is still three-dimensional. Objects can overlap, rotate, move behind one another, receive lighting, and be clipped by the near and far planes. Depth still affects visibility and rendering order; it simply does not change apparent size.

2. When to use OrthographicCamera

Use a PerspectiveCamera when realistic depth is part of the experience. Use an orthographic camera when comparison, layout, or controlled scale is the priority.

3. Create an OrthographicCamera

The constructor has six boundaries: left, right, top, bottom, near, and far. Together they define the camera's rectangular viewing volume.

const viewSize = 4
const aspect = window.innerWidth / window.innerHeight

const camera = new THREE.OrthographicCamera(
  (-viewSize * aspect) / 2, // left
  (viewSize * aspect) / 2,  // right
  viewSize / 2,             // top
  -viewSize / 2,            // bottom
  0.1,                      // near
  100                       // far
)

camera.position.z = 5

This setup always shows four world units vertically. The visible horizontal width expands or contracts with the screen aspect ratio, preventing the scene from stretching.

4. Understand left, right, top, and bottom

The first four values define a rectangle in camera space. Content inside that rectangle can be visible; content beyond its edges is cropped.

• left and right control horizontal coverage.
• top and bottom control vertical coverage.
• A symmetric camera uses matching negative and positive boundaries around zero.
• A wider numeric range shows more of the world, making objects appear smaller.
• A narrower range shows less of the world, making objects appear larger.

On a 16:9 screen with a four-unit vertical view, the aspect is approximately 1.78. The horizontal range becomes about -3.56 to +3.56, giving a total width near 7.12 world units and preserving the screen's proportions.

5. Near and far clipping planes

The final two values limit visible depth. Objects closer than the near plane or beyond the far plane are clipped. Keep the range only as large as the scene needs to preserve useful depth precision.

const camera = new THREE.OrthographicCamera(
  left,
  right,
  top,
  bottom,
  0.1,  // near
  100   // far
)

6. Position and aim the camera

A flat projection does not remove the need to position the camera. Place it away from the subject and point it at the part of the scene you want to frame.

camera.position.set(0, 0, 5)
camera.lookAt(0, 0, 0)

For top-down content, move the camera above the scene. Because a camera's default up direction is positive y, set a different up vector when looking directly down to keep orientation predictable:

camera.position.set(0, 10, 0)
camera.up.set(0, 0, -1)
camera.lookAt(0, 0, 0)

7. Make the orthographic camera responsive

A PerspectiveCamera usually updates one aspect property. An OrthographicCamera instead needs new left and right boundaries—or all four boundaries—when the canvas changes shape.

const viewSize = 4

function resizeScene() {
  const width = window.innerWidth
  const height = window.innerHeight
  const aspect = width / height

  camera.left = (-viewSize * aspect) / 2
  camera.right = (viewSize * aspect) / 2
  camera.top = viewSize / 2
  camera.bottom = -viewSize / 2
  camera.updateProjectionMatrix()

  renderer.setSize(width, height)
  renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
}

window.addEventListener('resize', resizeScene)
resizeScene()

updateProjectionMatrix() is essential after modifying the camera boundaries. Without it, the stored values change but the rendered projection remains unchanged.

8. Zoom without moving the camera

The zoom property changes how much of the orthographic box fills the output. This is often more convenient than recalculating all four boundaries for user-controlled zoom.

camera.zoom = 1.5
camera.updateProjectionMatrix()

function setZoom(nextZoom) {
  camera.zoom = THREE.MathUtils.clamp(nextZoom, 0.5, 4)
  camera.updateProjectionMatrix()
}

A value greater than 1 zooms in; a value between 0 and 1 zooms out. Clamp interactive zoom to sensible limits so the scene cannot disappear or become impractically large.

9. Create a pixel-based camera

For sprite editors, screen-space overlays, and other pixel-oriented scenes, define one world unit as one CSS pixel. Centering the boundaries around zero places the world origin at the screen center.

function updatePixelCamera() {
  const width = renderer.domElement.clientWidth
  const height = renderer.domElement.clientHeight

  camera.left = width / -2
  camera.right = width / 2
  camera.top = height / 2
  camera.bottom = height / -2
  camera.updateProjectionMatrix()
}

If the origin should be at the top-left instead, use left = 0, right = width, top = 0, and bottom = height, then account for the direction of the vertical axis in your object positions.

10. Build an isometric-style view

An isometric-style composition uses an angled orthographic camera. Equal values on x, y, and z produce a balanced view of three axes; lookAt() keeps the origin centered.

camera.position.set(10, 10, 10)
camera.lookAt(0, 0, 0)

// Optional: rotate the world or camera for art-direction adjustments
camera.zoom = 1.25
camera.updateProjectionMatrix()

Orthographic projection gives the familiar strategy-game or architectural-model appearance, but technically perfect isometric projection also depends on the camera orientation and the relationship between the projected axes. Adjust the position for the composition your project needs.

11. Complete working example

The following example assumes the scene, renderer, and canvas setup from Your First Three.js Scene.

import * as THREE from 'three'

const canvas = document.querySelector('.world')
const scene = new THREE.Scene()
scene.background = new THREE.Color(0x07111f)

const viewSize = 5
const aspect = window.innerWidth / window.innerHeight
const camera = new THREE.OrthographicCamera(
  (-viewSize * aspect) / 2,
  (viewSize * aspect) / 2,
  viewSize / 2,
  -viewSize / 2,
  0.1,
  100
)
camera.position.set(6, 6, 6)
camera.lookAt(0, 0, 0)

const renderer = new THREE.WebGLRenderer({ canvas, antialias: true })

const geometry = new THREE.BoxGeometry(1, 1, 1)
const material = new THREE.MeshNormalMaterial()
const cube = new THREE.Mesh(geometry, material)
scene.add(cube)

function resizeScene() {
  const width = window.innerWidth
  const height = window.innerHeight
  const nextAspect = width / height

  camera.left = (-viewSize * nextAspect) / 2
  camera.right = (viewSize * nextAspect) / 2
  camera.top = viewSize / 2
  camera.bottom = -viewSize / 2
  camera.updateProjectionMatrix()

  renderer.setSize(width, height)
  renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2))
}

window.addEventListener('resize', resizeScene)
resizeScene()

renderer.setAnimationLoop(() => {
  cube.rotation.y += 0.01
  renderer.render(scene, camera)
})

12. PerspectiveCamera vs OrthographicCamera

13. Common mistakes and fixes

14. Quick reference

Frequently asked questions

Official references

• OrthographicCamera documentation
• Three.js camera guide
• Three.js responsive design guide

Choose the projection that serves the scene

OrthographicCamera is not a simplified PerspectiveCamera; it is a different visual tool. Its parallel projection makes scale predictable, its rectangular frustum gives exact framing control, and its zoom property makes maps and editor-like interfaces easy to navigate. Once you understand the six boundaries and update them correctly on resize, flat, top-down, and isometric scenes become straightforward to build.
