GSAP ScrollSmoother Tutorial: Create Smooth Scrolling Experiences

A normal website uses native scrolling, and that is usually the correct default. Highly visual pages can sometimes benefit from a small amount of visual smoothing without replacing the scrollbar, keyboard input or touch mechanics. ScrollSmoother adds that progressive-enhancement layer and remains integrated with ScrollTrigger.

1. What Is ScrollSmoother?

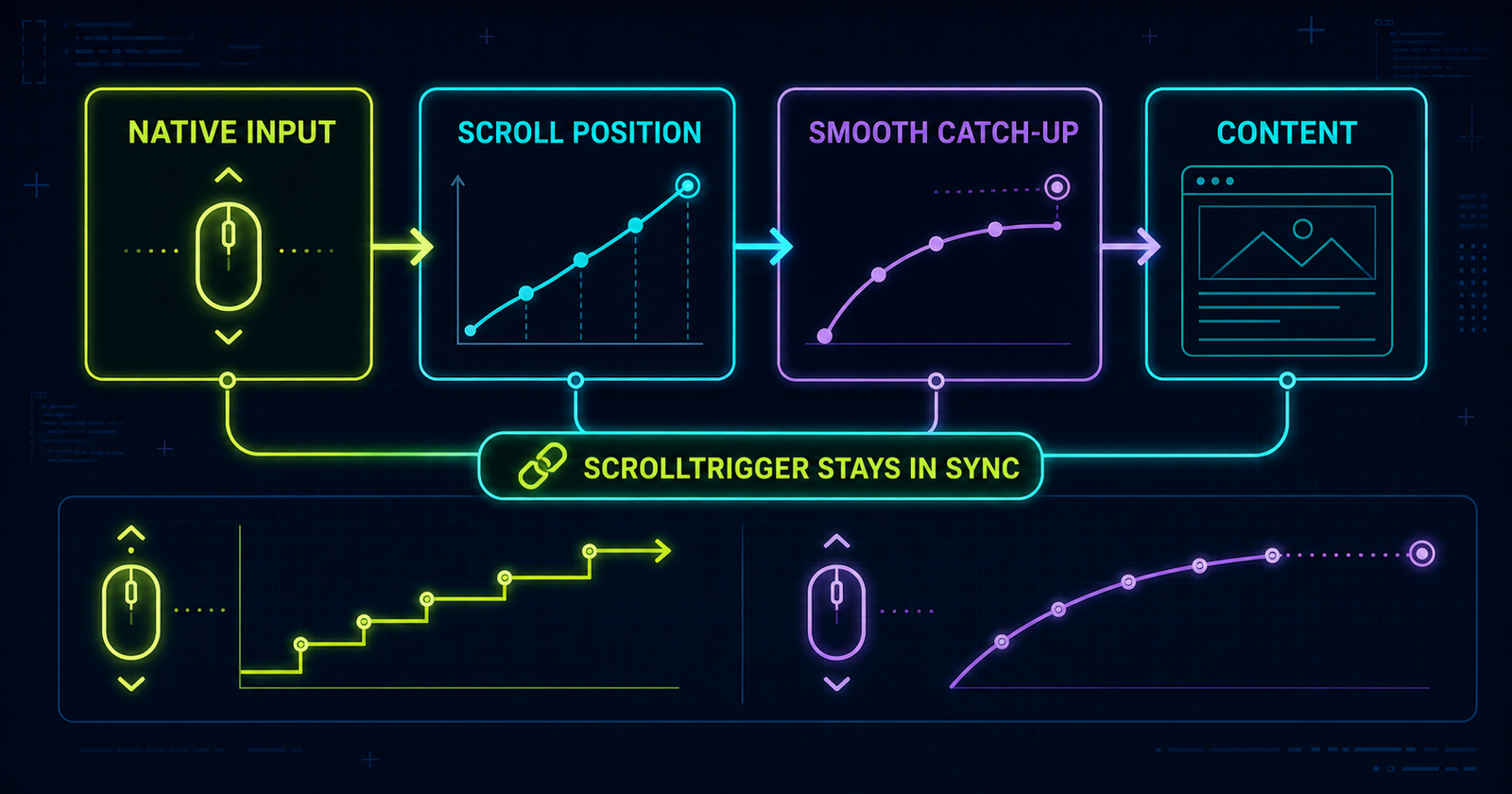

ScrollSmoother is GSAP's vertical smooth-scrolling plugin. Native scroll position changes first; ScrollSmoother then transforms one content element so its visual position catches up over a short duration.

2. ScrollSmoother vs ScrollTrigger

They solve different problems and are designed to work together. A section can enter at top 80% while the overall page movement is visually smoothed.

3. ScrollSmoother vs CSS scroll-behavior

4. Load ScrollSmoother

This page pins all three files to GSAP 3.13.0 so core and plugins stay compatible. Load core first, then ScrollTrigger, then ScrollSmoother, and register both plugins.

<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/gsap.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/ScrollTrigger.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/gsap@3.13.0/dist/ScrollSmoother.min.js"></script>

gsap.registerPlugin(ScrollTrigger, ScrollSmoother);

5. Required Page Structure

One wrapper acts as the viewport and its only child is the content element ScrollSmoother transforms. Fixed interface elements belong outside this transformed pair.

<header class="site-header">...</header>
<div id="smooth-wrapper">
  <div id="smooth-content">
    <main>...</main>
    <footer>...</footer>
  </div>
</div>

6. Wrapper vs Content

7. First ScrollSmoother Instance

const smoother = ScrollSmoother.create({
  wrapper: "#smooth-wrapper",
  content: "#smooth-content",
  smooth: 1,
  effects: true
});

effects: true is necessary only when the page uses speed or lag effects.

8. Only One Instance

Creating competing root smoothers produces unpredictable ownership and cleanup. Retrieve and reuse the active instance.

9. ScrollSmoother.get()

let smoother = ScrollSmoother.get();

if (!smoother) {
  smoother = ScrollSmoother.create({ smooth: 1 });
}

10. Understanding smooth

The number is the approximate catch-up time in seconds. A larger value feels softer but also creates more separation from the user's input.

11. smooth() Getter and Setter

const current = smoother.smooth();
smoother.smooth(1.5);

Change the setting deliberately rather than updating it continuously during scroll.

12. Smooth Value Comparison

Start near 1, test with wheel, touchpad and scrollbar dragging, then reduce the value if navigation feels delayed. This article's live controls expose 0.5, 1, 1.5 and 2 seconds.

13. ScrollSmoother + Existing ScrollTrigger

ScrollSmoother is built on ScrollTrigger. Existing triggers can keep their normal window-scroller architecture.

gsap.from(".feature-card", {
  y: 40,
  opacity: 0,
  scrollTrigger: {
    trigger: ".feature-card",
    start: "top 80%"
  }
});

14. ScrollSmoother + Timeline

A timeline still organizes animation sequence; the smoother only changes the page's visual scrolling feel.

15. ScrollSmoother + Scrub

A scrubbed animation still maps ScrollTrigger progress to animation progress. The smoother and scrub values are separate catch-up systems, so avoid making both excessively slow.

16. ScrollSmoother + Pin

Pin remains available, but transformed ancestors, fixed children and long mobile pin ranges require testing. Read the complete ScrollTrigger project for a production-minded pin fallback.

17. ScrollSmoother + Snap

Snap can settle a ScrollTrigger at meaningful progress points while ScrollSmoother controls the page feel. Keep snap gentle and interruptible. The snap tutorial explains normalized interval math.

18. progress

smoother.progress reports overall smoothed page progress from 0 to 1. It is suitable for a page rail, not for determining every section's business state.

19. Overall Page Progress UI

ScrollSmoother.create({
  smooth: 1,
  onUpdate(self) {
    progressBar.style.transform =
      `scaleX(${self.progress})`;
  }
});

20. getVelocity()

The method returns smoothed velocity in pixels per second. Positive and negative values indicate direction; the magnitude indicates intensity.

21. Velocity Demo

The main lab below updates velocity through ScrollSmoother's onUpdate. The code writes only small text and transform changes; it does not rebuild the DOM on every frame.

22. scrollTo()

smoother.scrollTo(
  "#mini-project",
  true,
  "top 110px"
);

The second argument enables the configured smoothing and the third aligns the target relative to the viewport.

23. Scroll-to Section Navigation

24. Fixed Header Offset

Use a position such as "top 110px" so the destination is not hidden under a fixed header. The precise value should match the real header at each breakpoint.

25. scrollTop()

const currentPixels = smoother.scrollTop();
smoother.scrollTop(500);

The getter reads pixels; the setter jumps immediately. Prefer scrollTo() when a smooth visible transition is intended.

26. offset()

const targetY = smoother.offset(
  "#faq",
  "top 110px"
);

offset() calculates the numeric scroll position for a target and alignment.

27. ScrollSmoother Effects

Set effects: true to activate supported data-speed and data-lag attributes. Apply them to decorative layers, not essential paragraphs.

28. Speed Effect / Parallax Concept

29. data-speed

<div data-speed="0.8">Slow layer</div>
<div data-speed="1">Normal layer</div>
<div data-speed="1.2">Fast layer</div>

30. Effects Initialization

const smoother = ScrollSmoother.create({
  smooth: 1,
  effects: true
});

31. Parallax-Like Hero Graphic

Keep the movement subtle, clip oversized visual layers and verify that the page has no horizontal overflow. Above-the-fold effects may benefit from a clamped speed value in current GSAP versions.

32. Lag Effects

Lag makes a decorative element take a specified number of seconds to catch up. Avoid lag on controls or readable body copy.

33. Speed vs Lag

34. Effects Playground

The layered cards in the main lab use restrained effects. On mobile and reduced-motion configurations they remain static and readable.

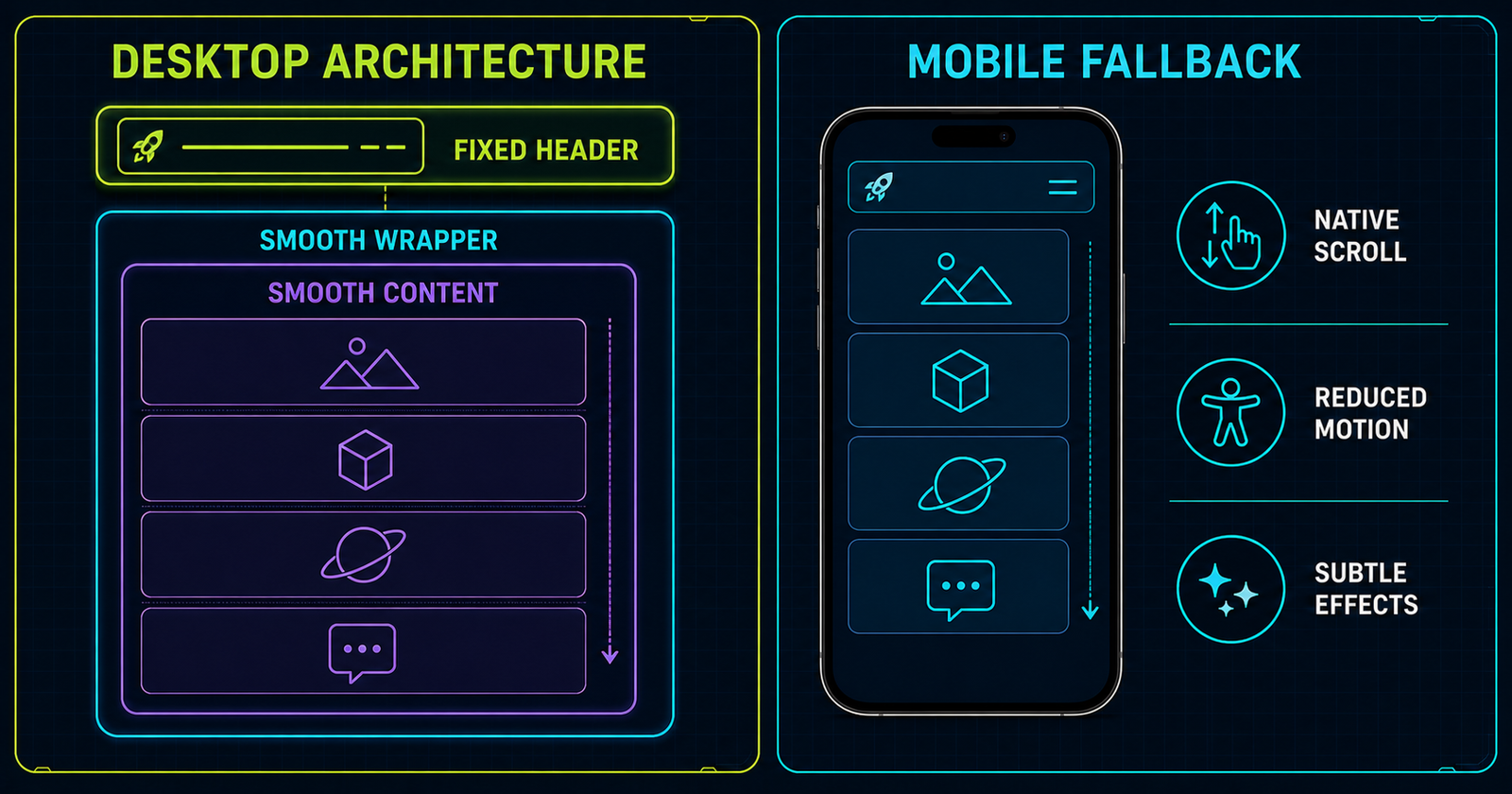

35. ScrollSmoother Main Architecture

36. Sticky and Fixed Header Considerations

The smooth content receives a transform, which creates a containing block. Put truly fixed headers outside the wrapper or replace the behavior with carefully tested pinning.

37. Modals and Overlays

Portals, lightboxes and modal overlays should also live outside transformed content when they must attach to the viewport. Test focus return, scroll locking and escape-key behavior independently.

38. ScrollSmoother and Anchor Links

Intercept only same-page hash links that need the smoother. Do not break normal links, keyboard activation or the URL fragment. This tutorial's lab uses buttons so the behavior is explicit.

39. ScrollSmoother vs Browser Native Scroll

40. When NOT to Use ScrollSmoother

• A simple text-heavy page gains no meaningful clarity.
• The effect delays navigation or makes touch input feel detached.
• The page cannot preserve focus, anchors or native fallback.
• Performance is already constrained by expensive visual effects.
• The design requires multiple competing root scrollers.

41. Smooth Scroll Is Not Scroll Hijacking

ScrollSmoother keeps native scroll mechanics underneath, but an extreme catch-up duration can still feel like control has been taken away. Modest settings and progressive enhancement matter more than the label.

42. Main ScrollSmoother Lab

43. Main Lab Controls

The four buttons call smoother.smooth(value) and expose their state with aria-pressed. The active instance is reused rather than recreated.

44. Main Lab Progress

The progress rail scales from the left using smoother.progress. Text is rounded for readability while the visual rail remains fluid.

45. Main Lab Velocity

Velocity is clamped only for the meter visualization; the text shows the signed value returned by GSAP.

46. Main Lab ScrollTo

Buttons call scrollTo() when the smoother exists and fall back to native scrollIntoView() when it does not.

47. Main Lab ScrollTrigger Card

48. Main Lab Effects Graphic

The three layers demonstrate normal flow, speed and lag. The text remains meaningful even if effects are disabled.

49. Main Lab Singleton Handling

let smoother = ScrollSmoother.get();
if (!smoother) {
  smoother = ScrollSmoother.create(options);
}

50. Creating Smoother Safely

This page creates one instance only on desktop with no reduced-motion preference. Its cleanup kills only the instance this article created.

51. Reduced Motion

Essential content never depends on the animation layer.

52. Mobile Considerations

This implementation keeps native scrolling below 900 pixels. It prioritizes direct touch response, readable content, working navigation and a reachable footer.

53. Touch Behavior

Test slow drag, fast flick, direction changes and browser-chrome resizing on real devices. Mouse-wheel behavior does not predict touch quality.

54. smoothTouch

Current ScrollSmoother supports a boolean or duration value, but its default is no smoothing on touch-only devices. This article does not force it because direct finger response is preferable.

55. ScrollSmoother and Refresh

Refresh after meaningful layout changes, not on every scroll. Fonts, decoded images and expanded components can change ScrollTrigger geometry.

56. Dynamic Content

After async content, accordions or image-size changes settle, call ScrollTrigger.refresh() deliberately so positions remain accurate.

57. Performance

• Prefer transforms and opacity.
• Avoid giant blur filters and many fixed backgrounds.
• Keep onUpdate work small.
• Use only a few subtle speed or lag effects.
• Measure on mid-range mobile hardware.

58. Accessibility

Do not trap scrolling, hide native scrollbars, delay focus, break anchors or conceal information. Preserve semantic headings and ensure controls work with keyboard and assistive technology.

59. Progressive Enhancement

60. Common ScrollSmoother Mistakes

61. Debugging Checklist

1. Confirm GSAP core loaded
2. Confirm ScrollTrigger loaded
3. Confirm ScrollSmoother loaded
4. Verify all versions match
5. Register both plugins
6. Check wrapper and content
7. Check for an existing instance
8. Inspect fixed UI placement
9. Check JavaScript errors
10. Test native fallback
11. Test reduced motion
12. Check horizontal overflow

62. Mini Project: Smooth Product Story

63. Mini Project Code

const smoother = ScrollSmoother.create({
  wrapper: "#smooth-wrapper",
  content: "#smooth-content",
  smooth: 1,
  effects: true
});

gsap.utils.toArray(".smooth-story article").forEach(section => {
  gsap.from(section, {
    y: 40,
    opacity: 0,
    scrollTrigger: { trigger: section, start: "top 80%" }
  });
});

64. Quick Reference

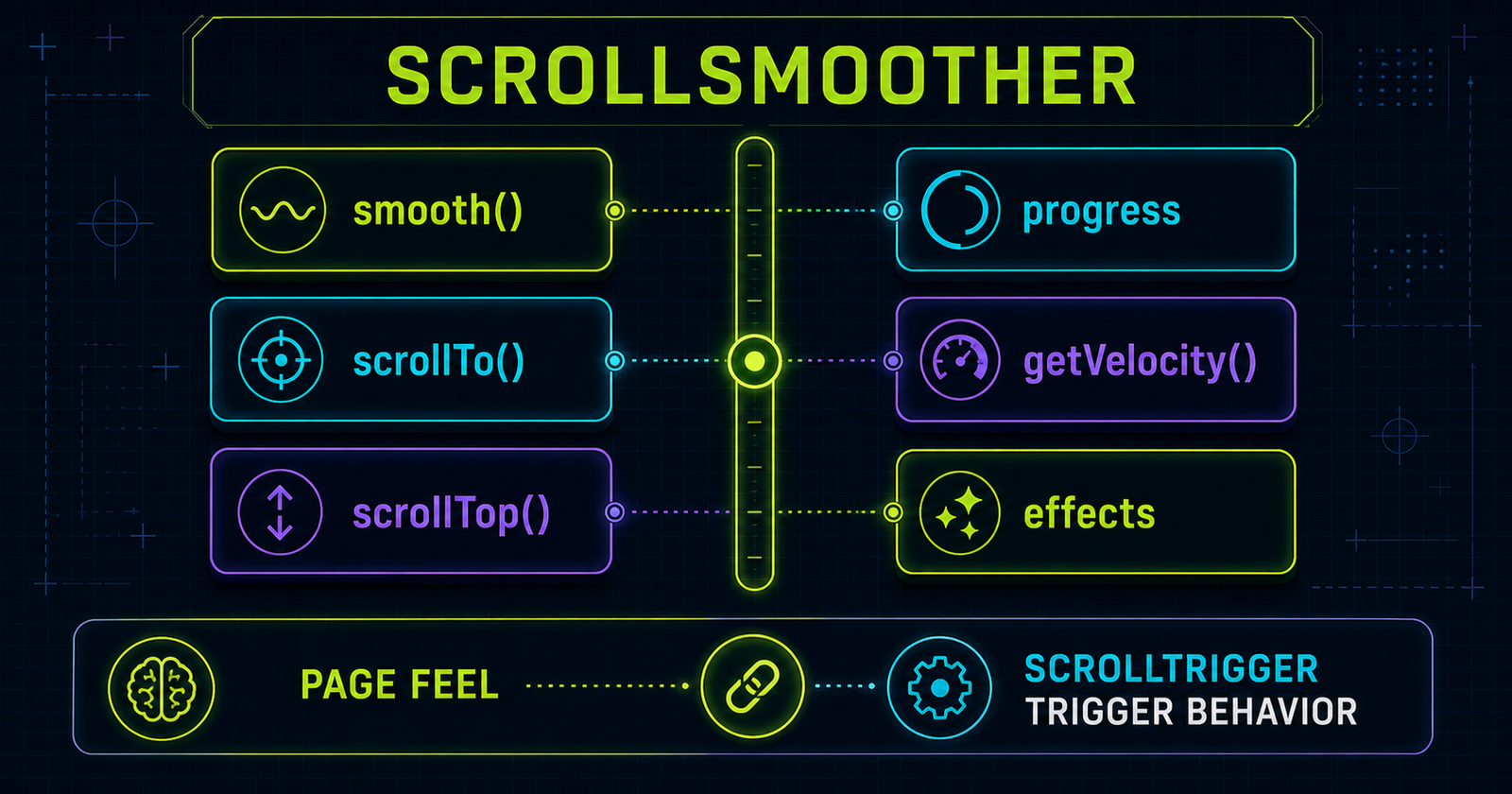

65. Cheat Sheet Graphic

66. Final Mental Model

67. Preview Blog #23
